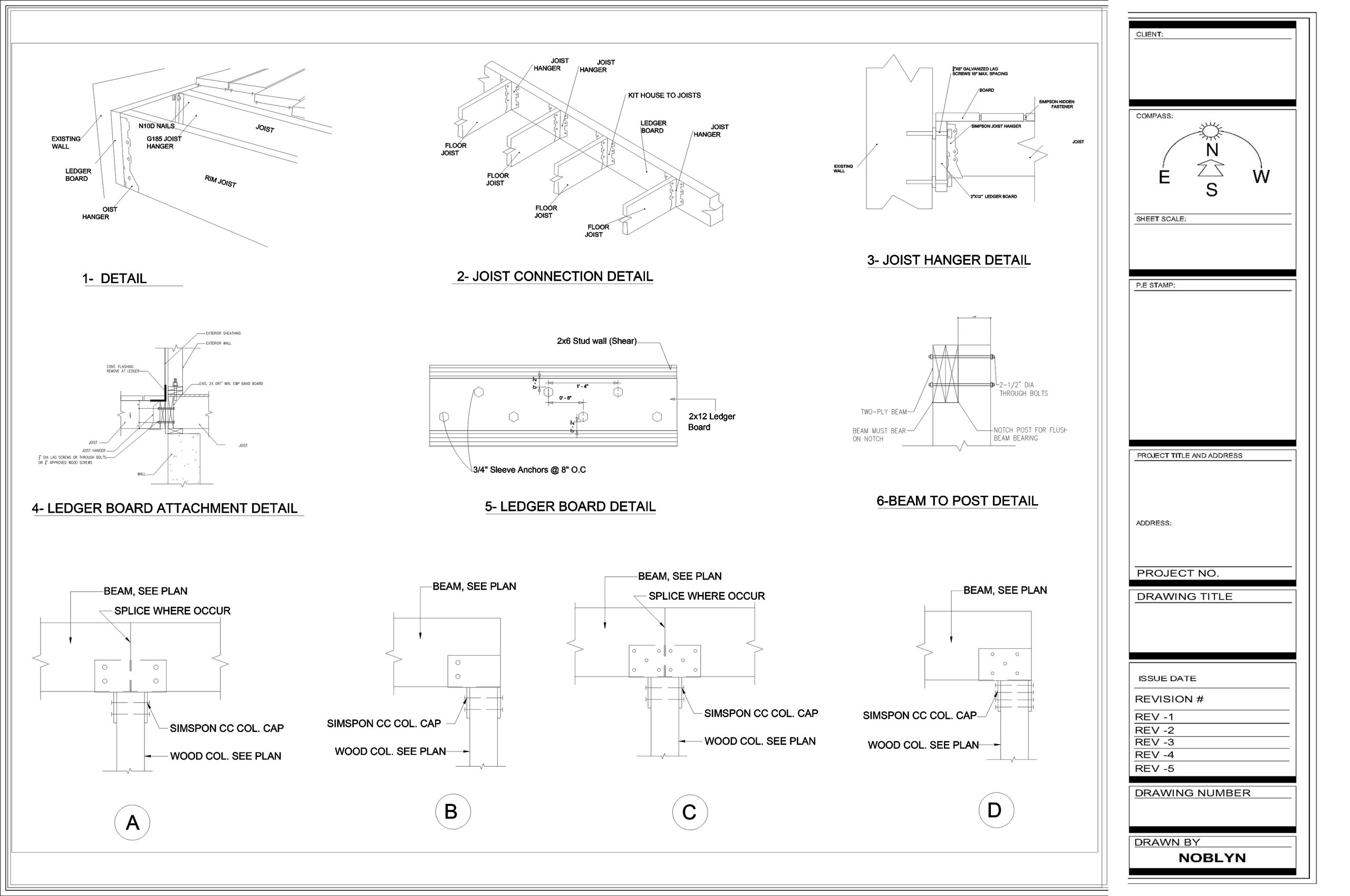

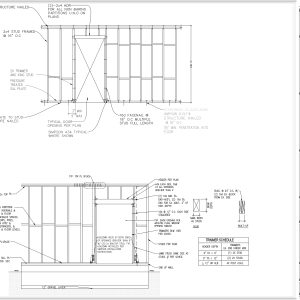

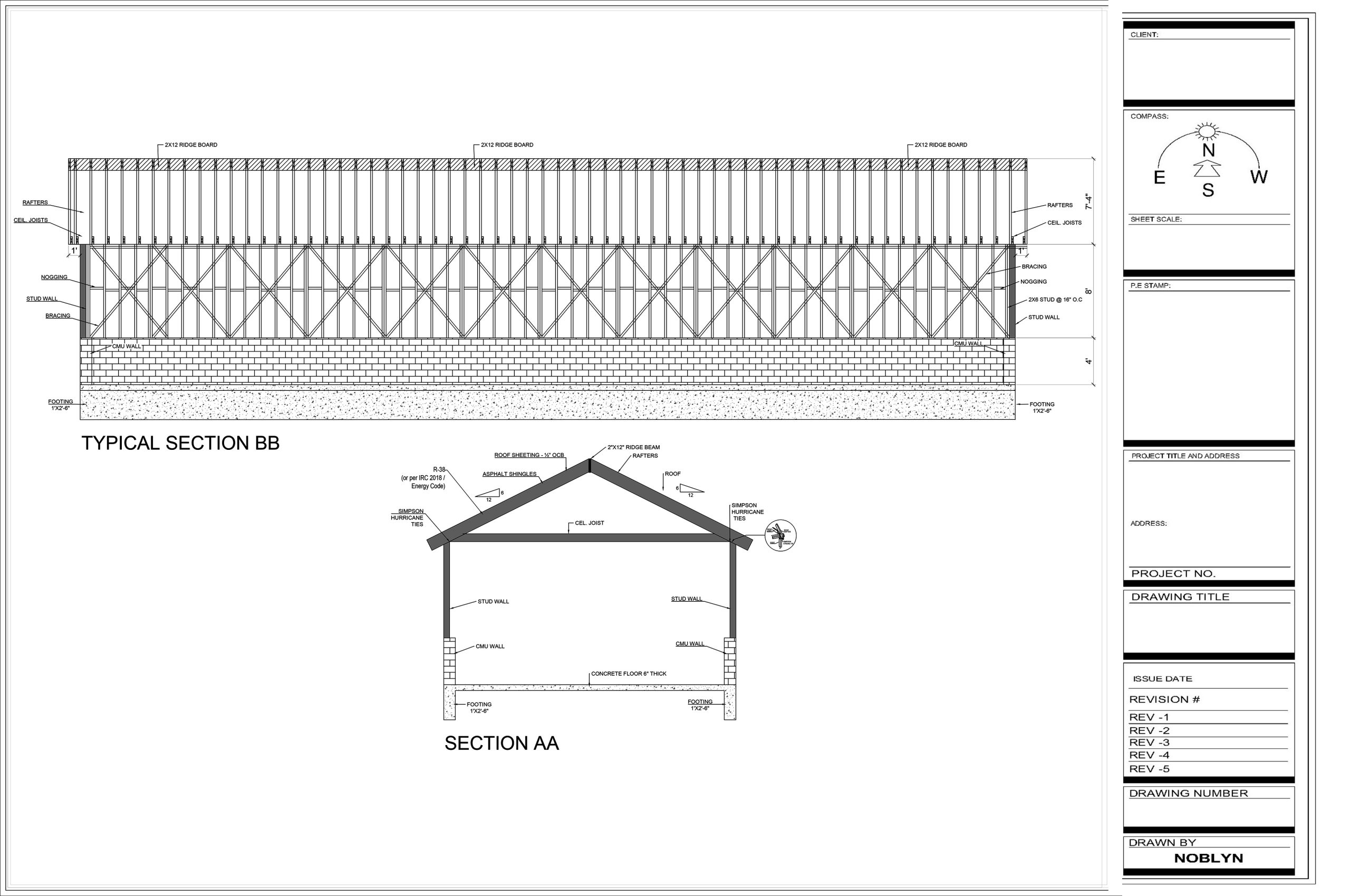

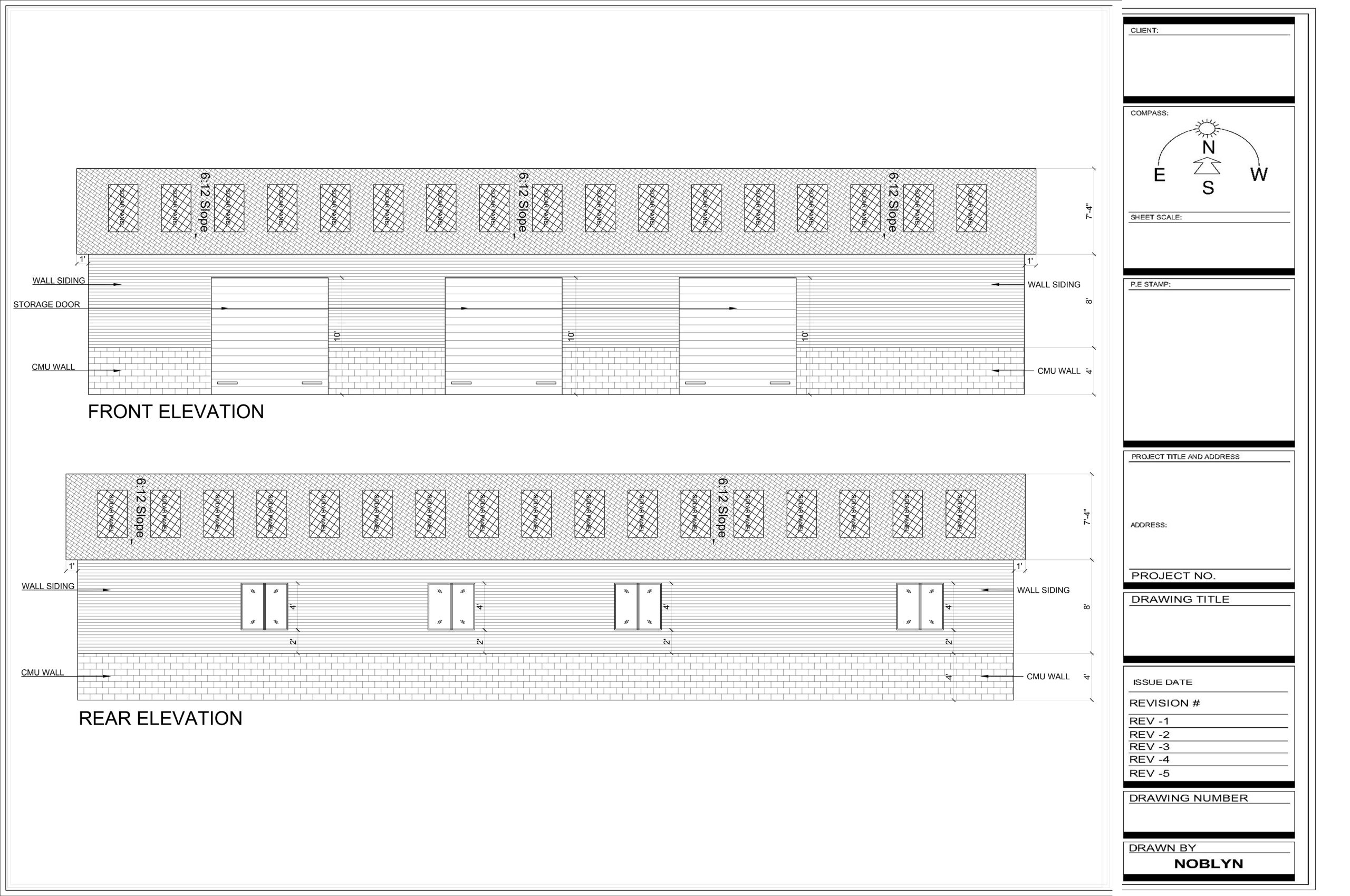

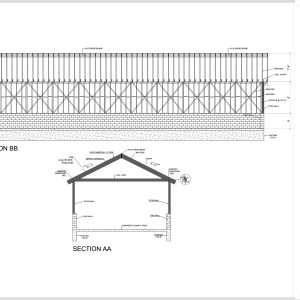

Maryland Storage & Garage Facility
Maryland Storage & Garage Facility

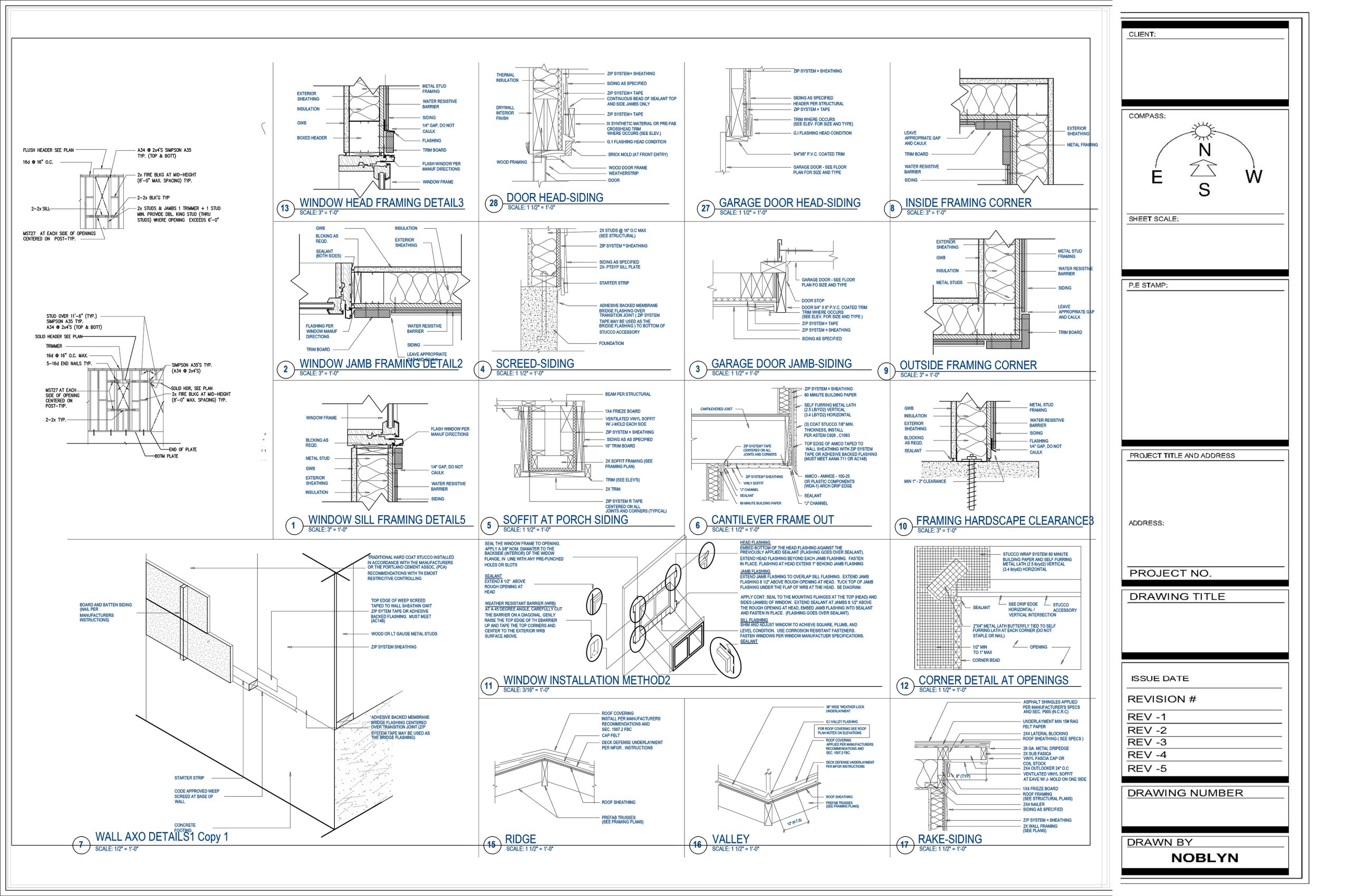

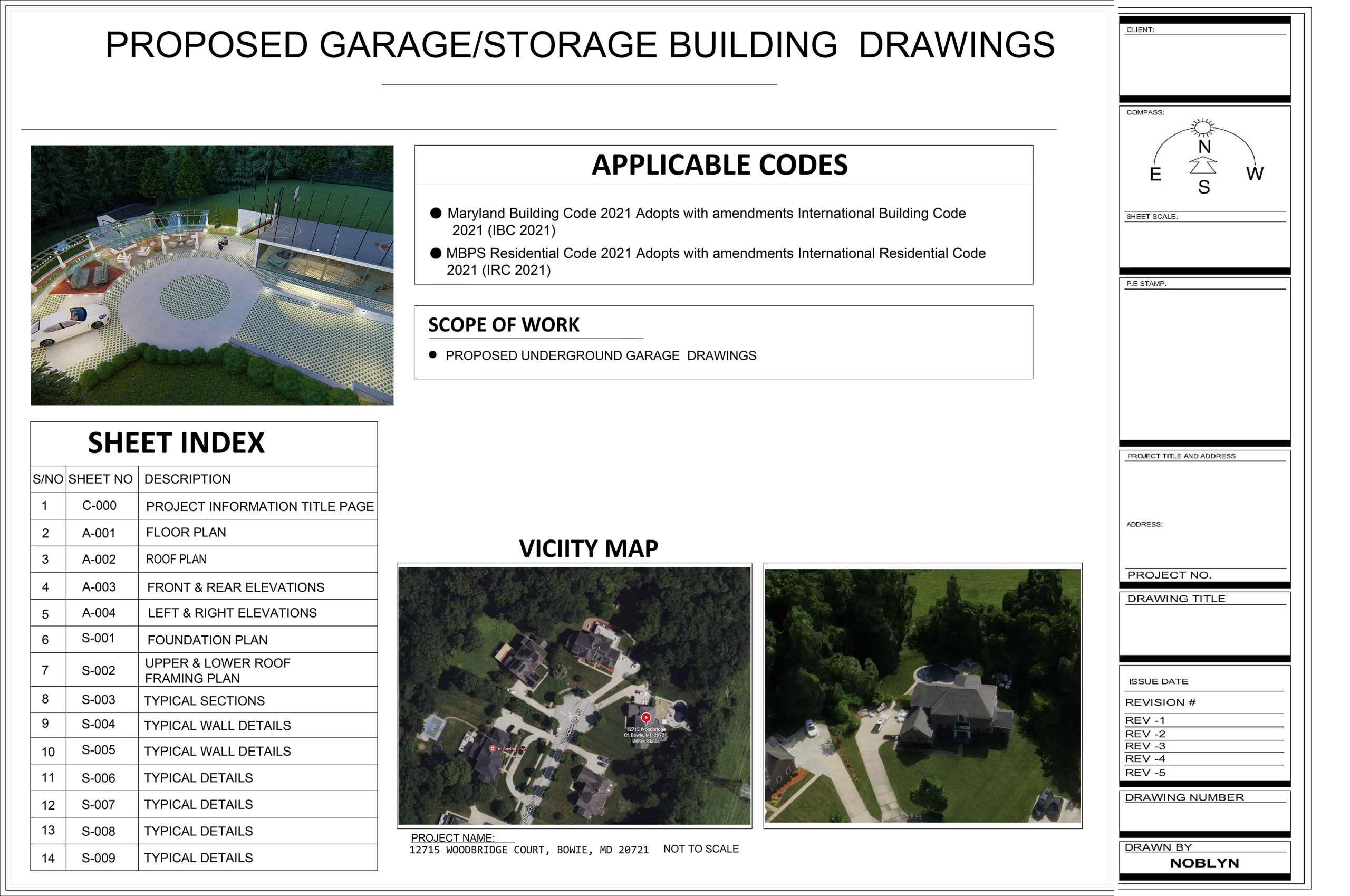

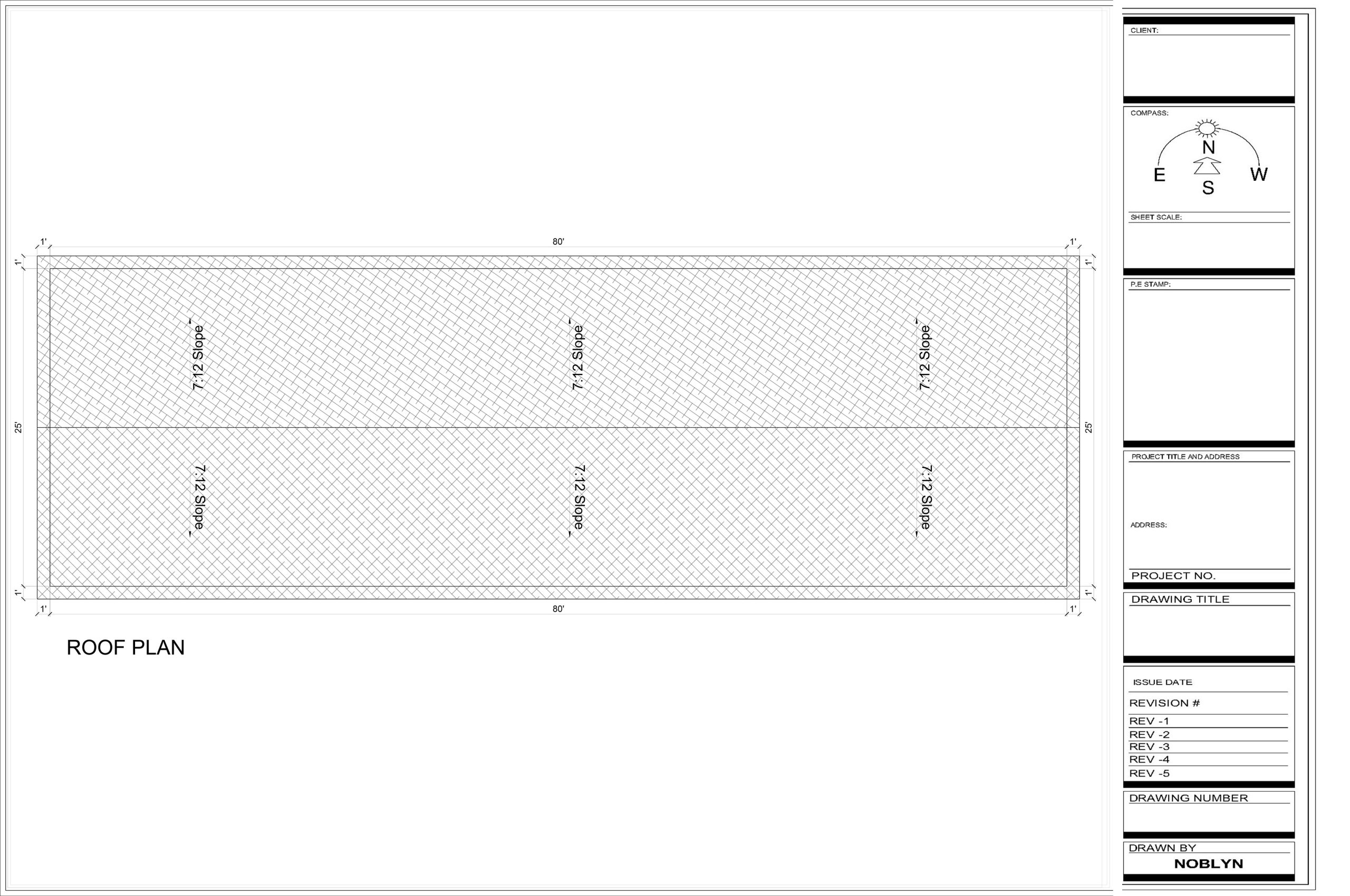

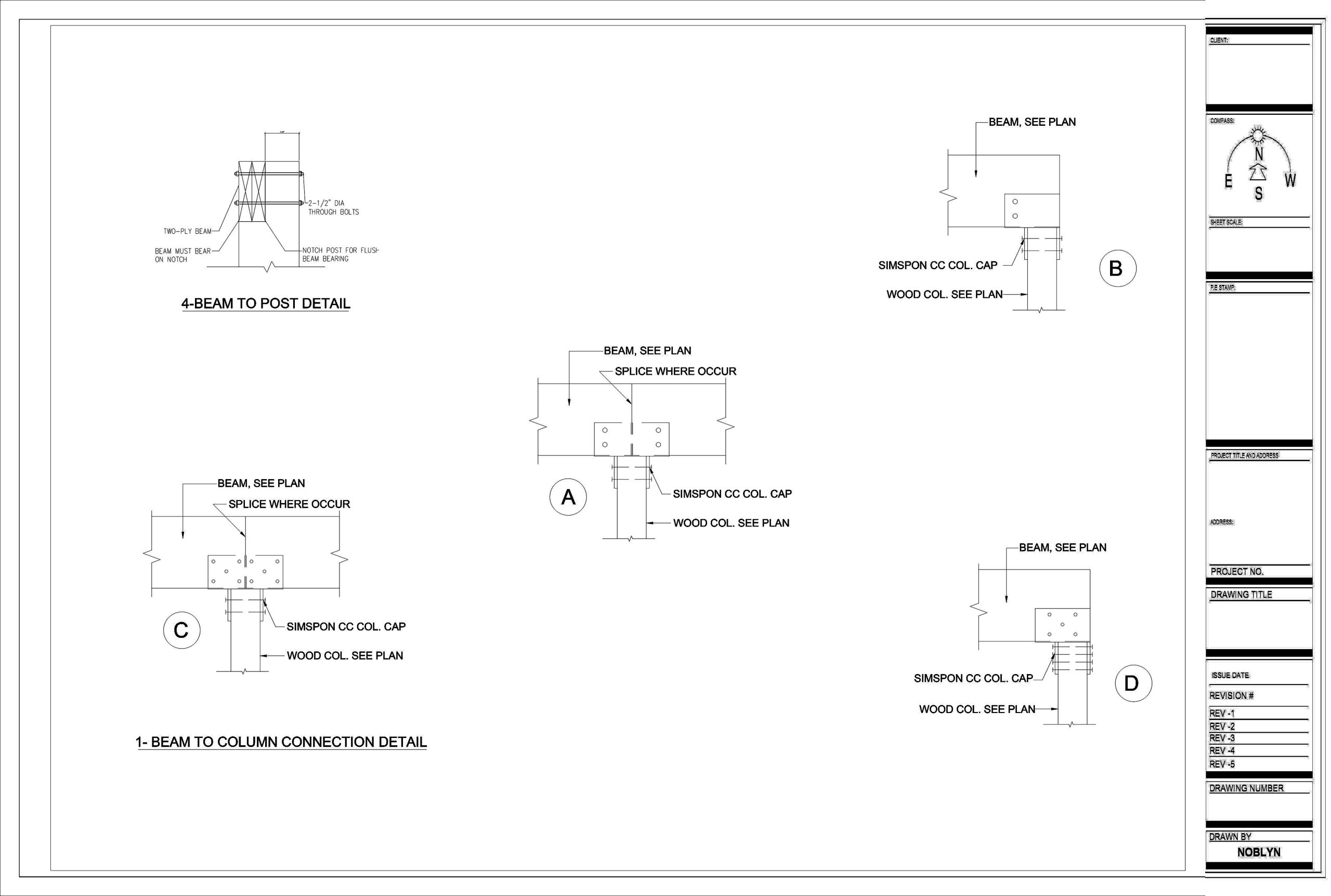

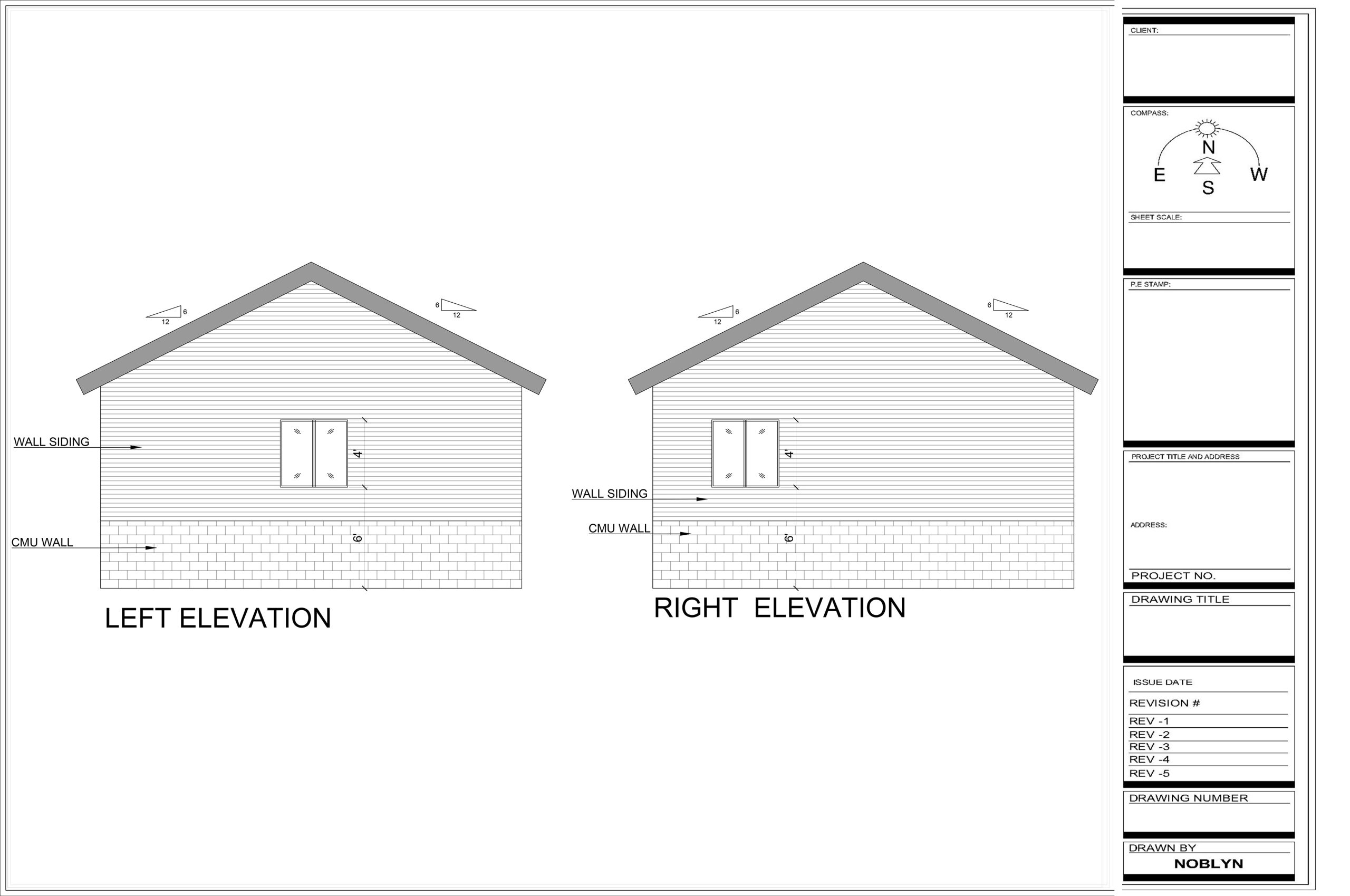

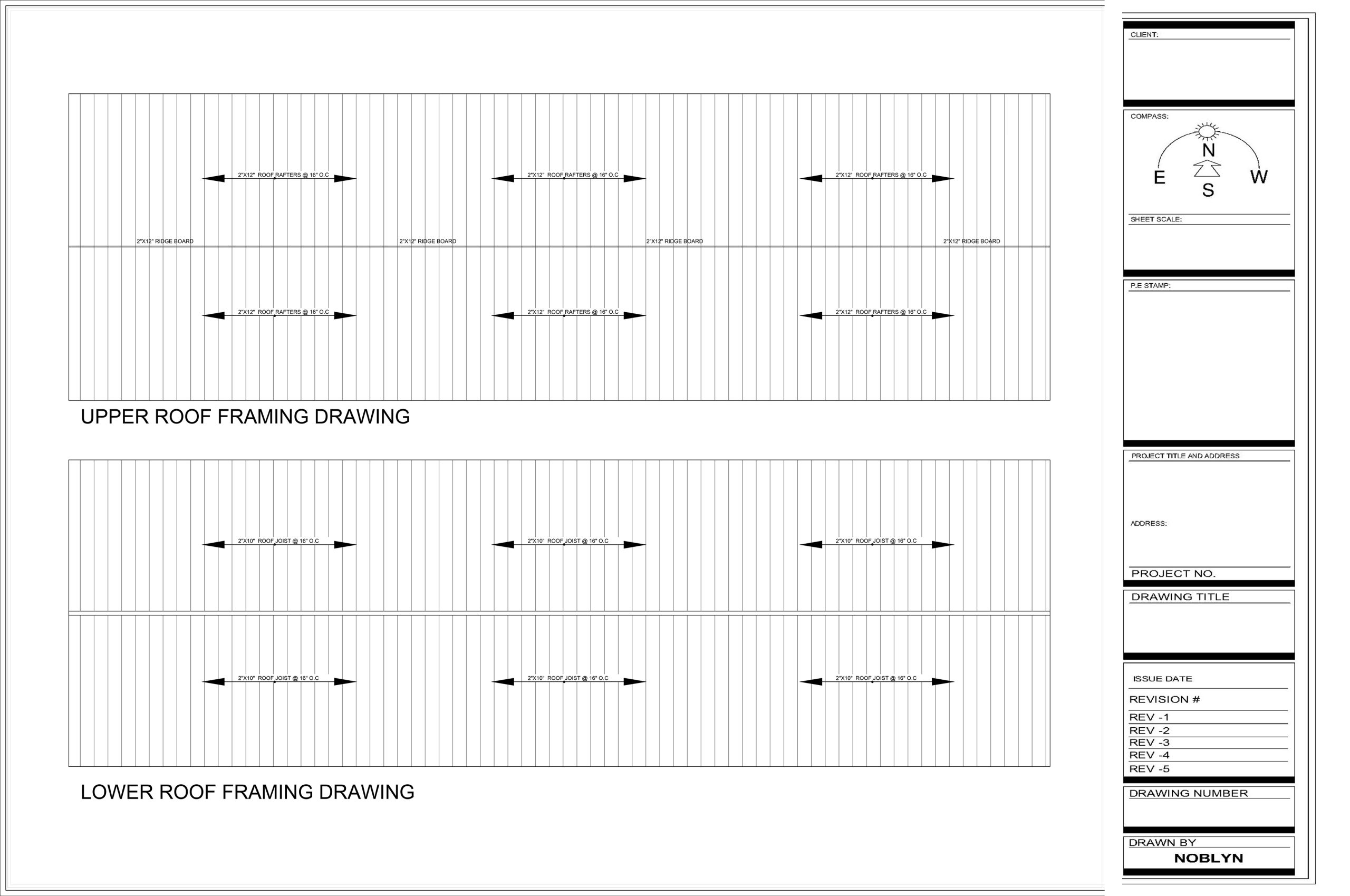

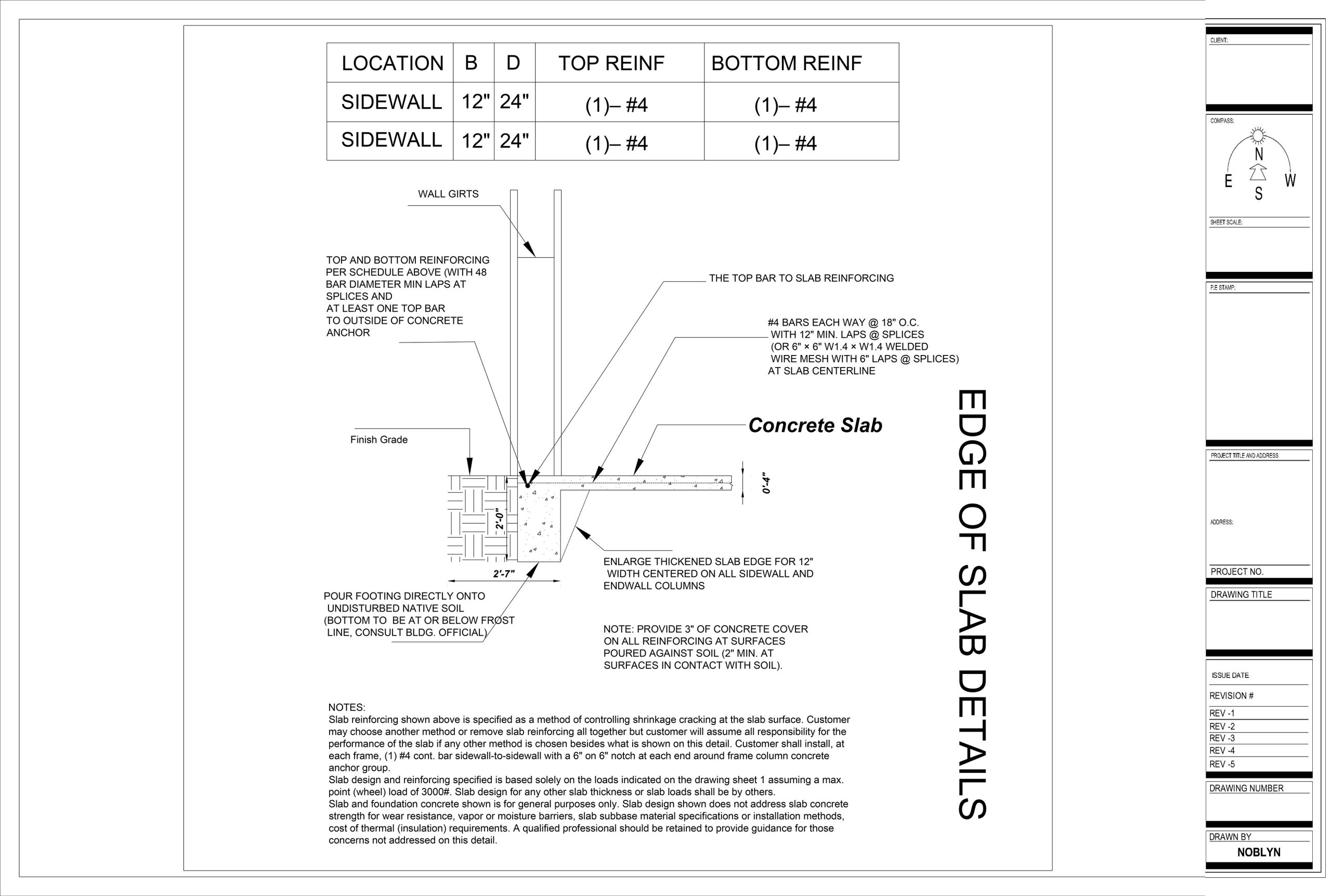

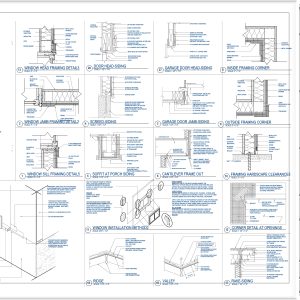

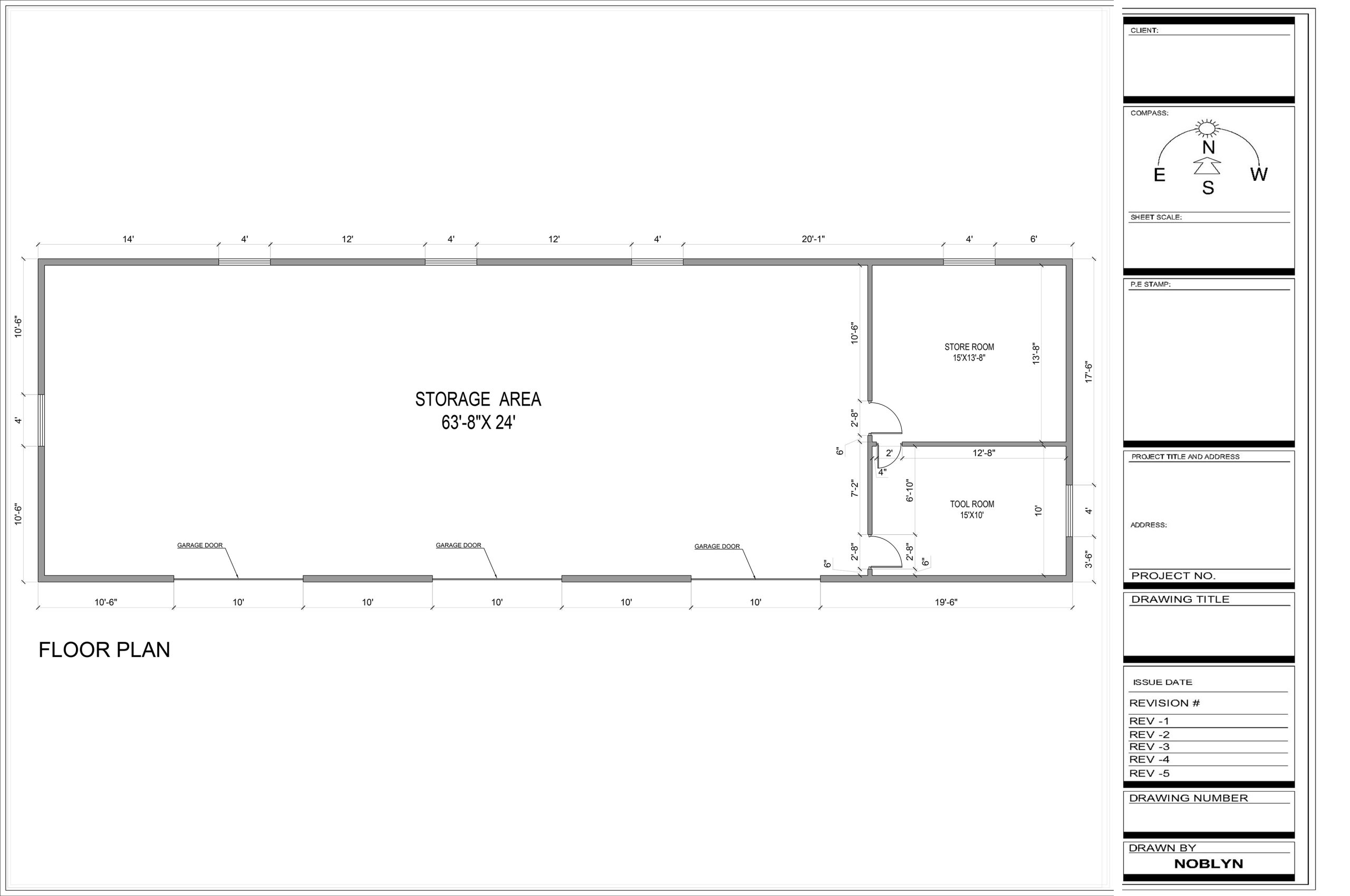

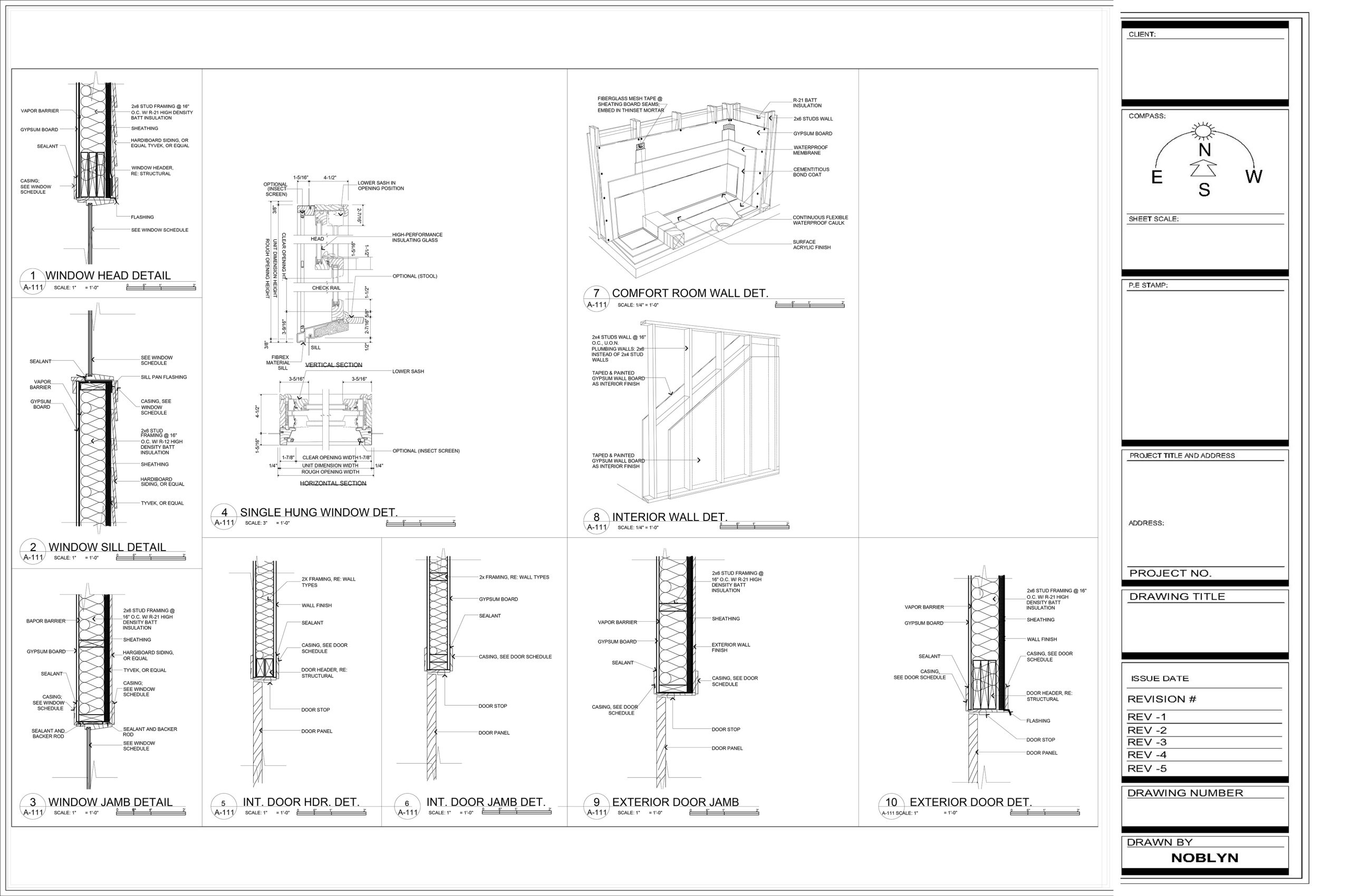

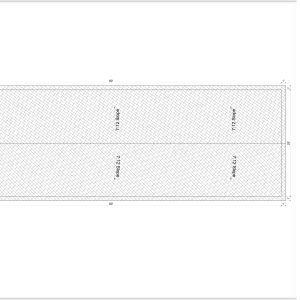

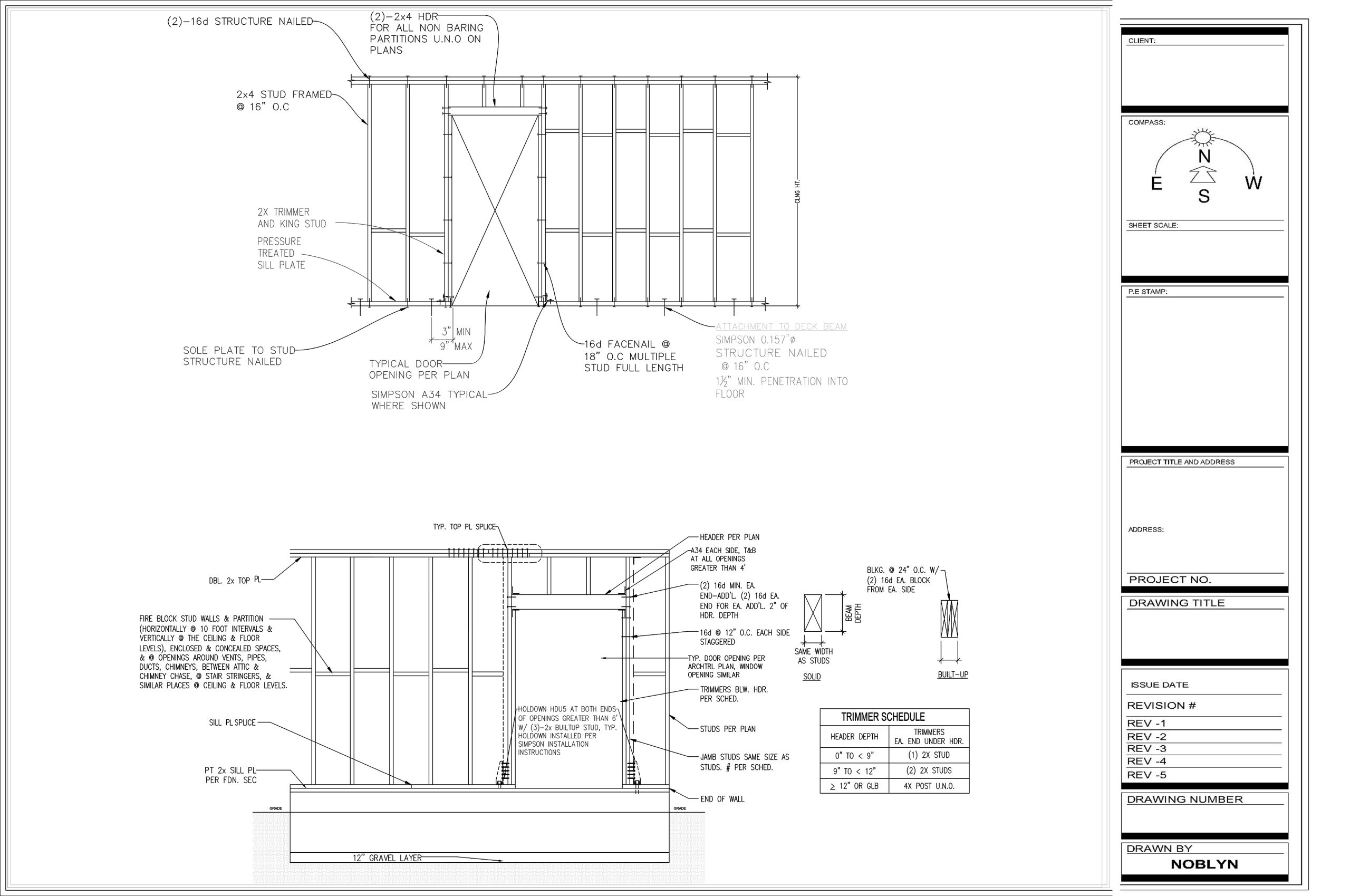

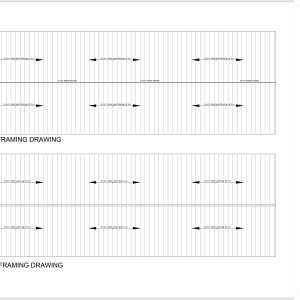

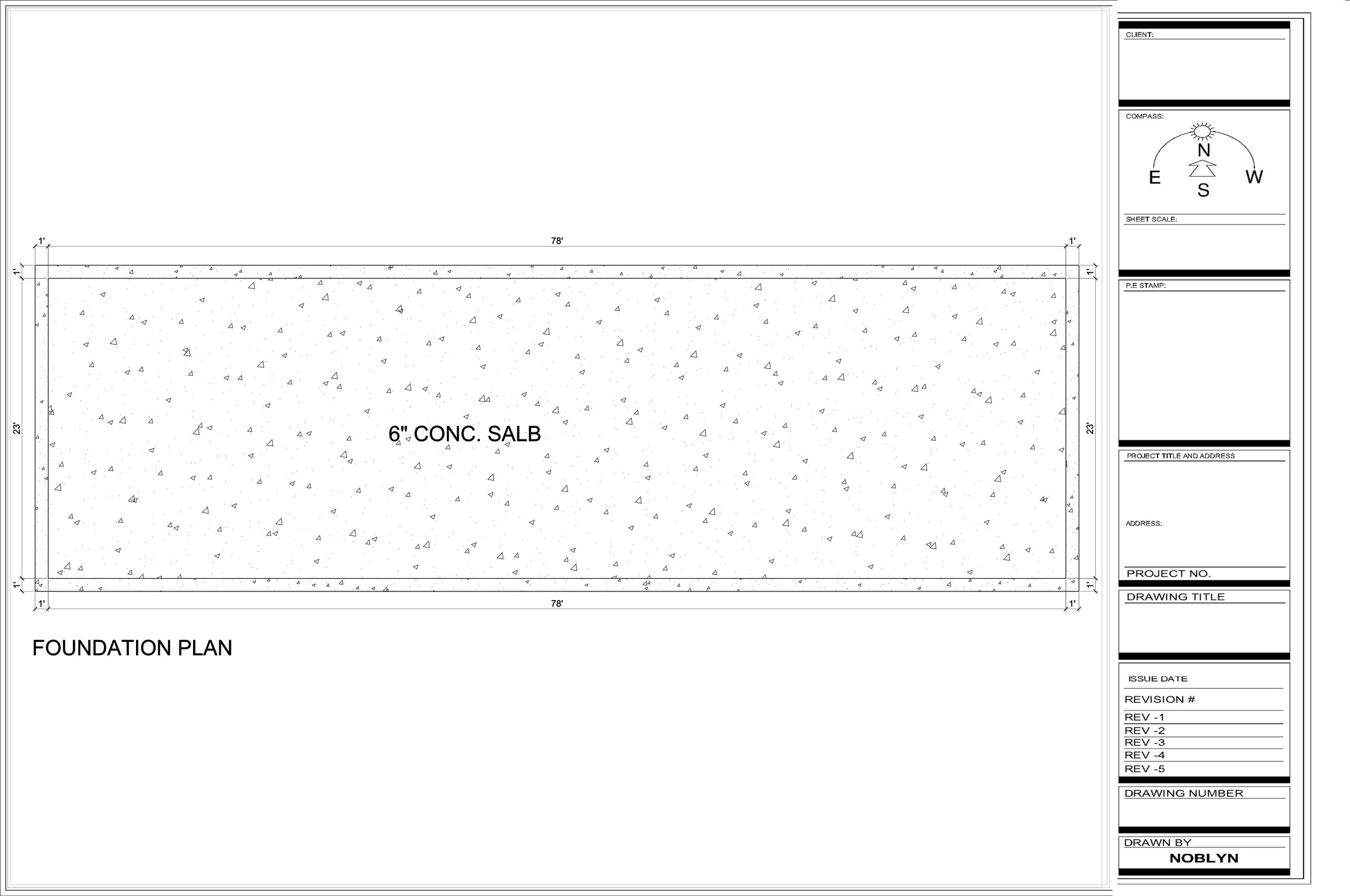

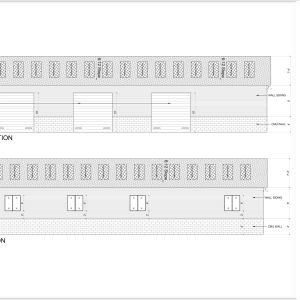

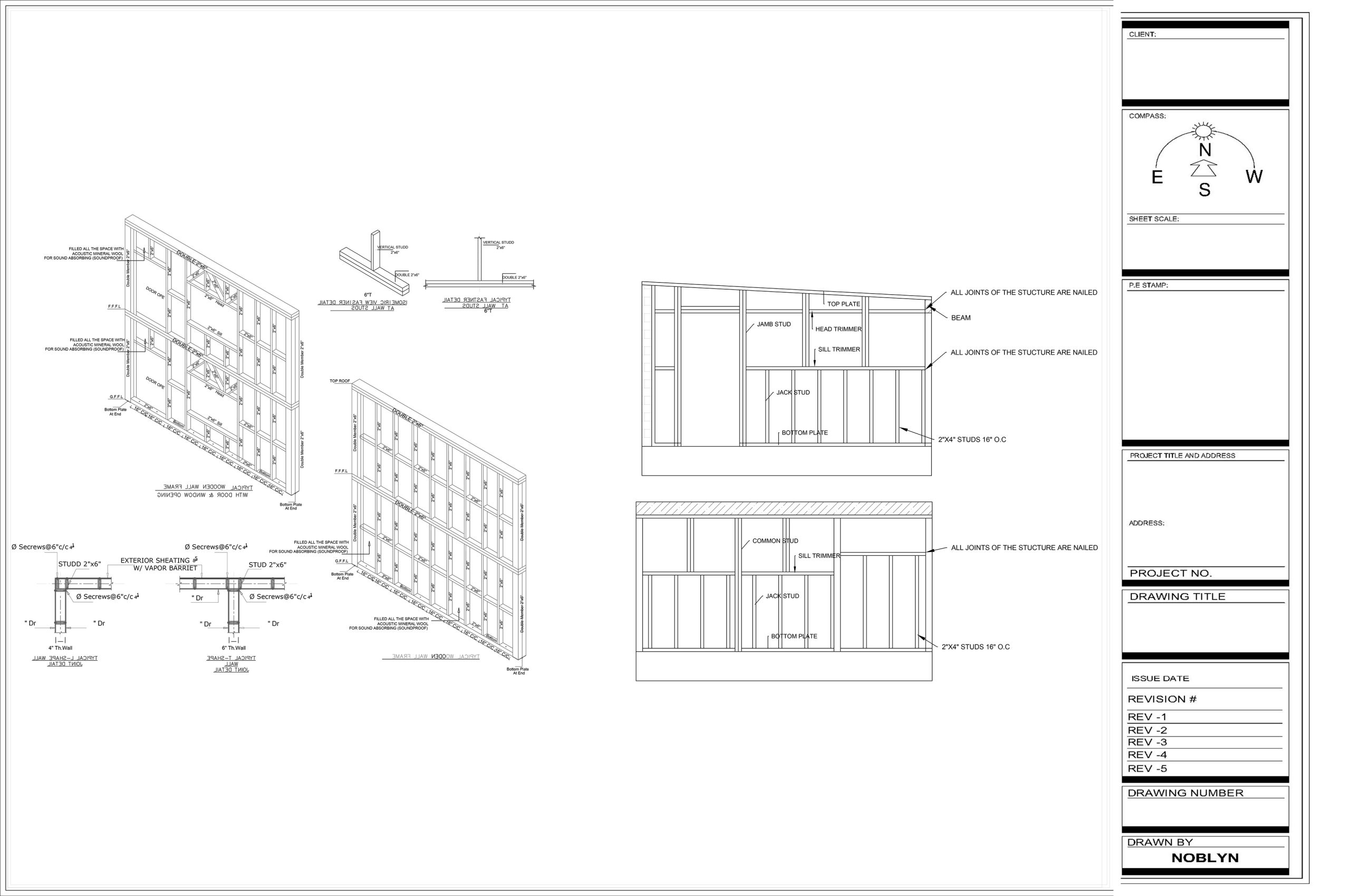

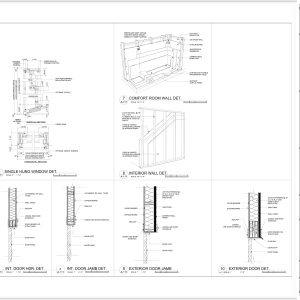

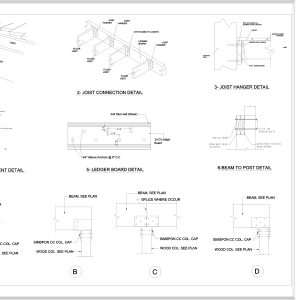

For this project in Bowie, Maryland, Noblyn LLC delivered a comprehensive architectural and structural drawing package for a large-scale proposed garage and storage building. Our architectural scope included precise floor layouts featuring a massive 63’x24′ primary storage area alongside dedicated store and tool rooms, complete with multi-bay exterior elevations. To guarantee uncompromising structural integrity, we engineered robust foundation plans for a 6″ concrete slab, roof framing, and highly detailed structural connections including joist hangers, ledger board attachments, and beam-to-post column caps. Furthermore, the package provides exhaustive architectural detailing—from specialized single-hung window assemblies and exterior door jambs to intricate siding, ridge, and valley framing clearances—ensuring flawless execution by the construction team. The entire design was meticulously calibrated to ensure strict compliance with the 2021 Maryland Building Code and the 2021 International Building Code, resulting in a fully coordinated, permit-ready set of blueprints.
- Category: Architectural and structural
- Location: Bowie, Maryland
- Completion: 2026
Redwood City Garage Addition & Civil Site Design
Redwood City Garage Addition & Civil Site Design

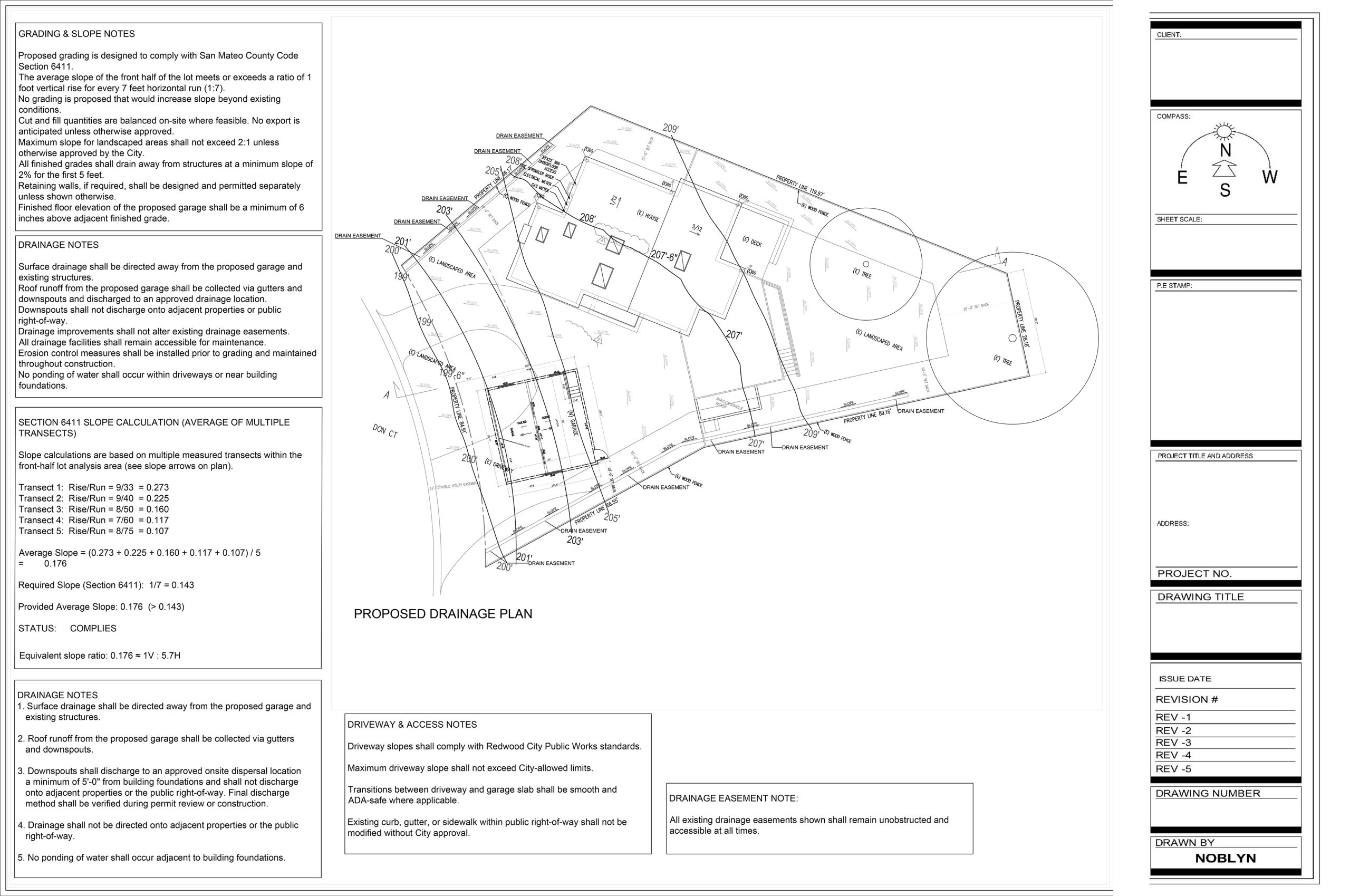

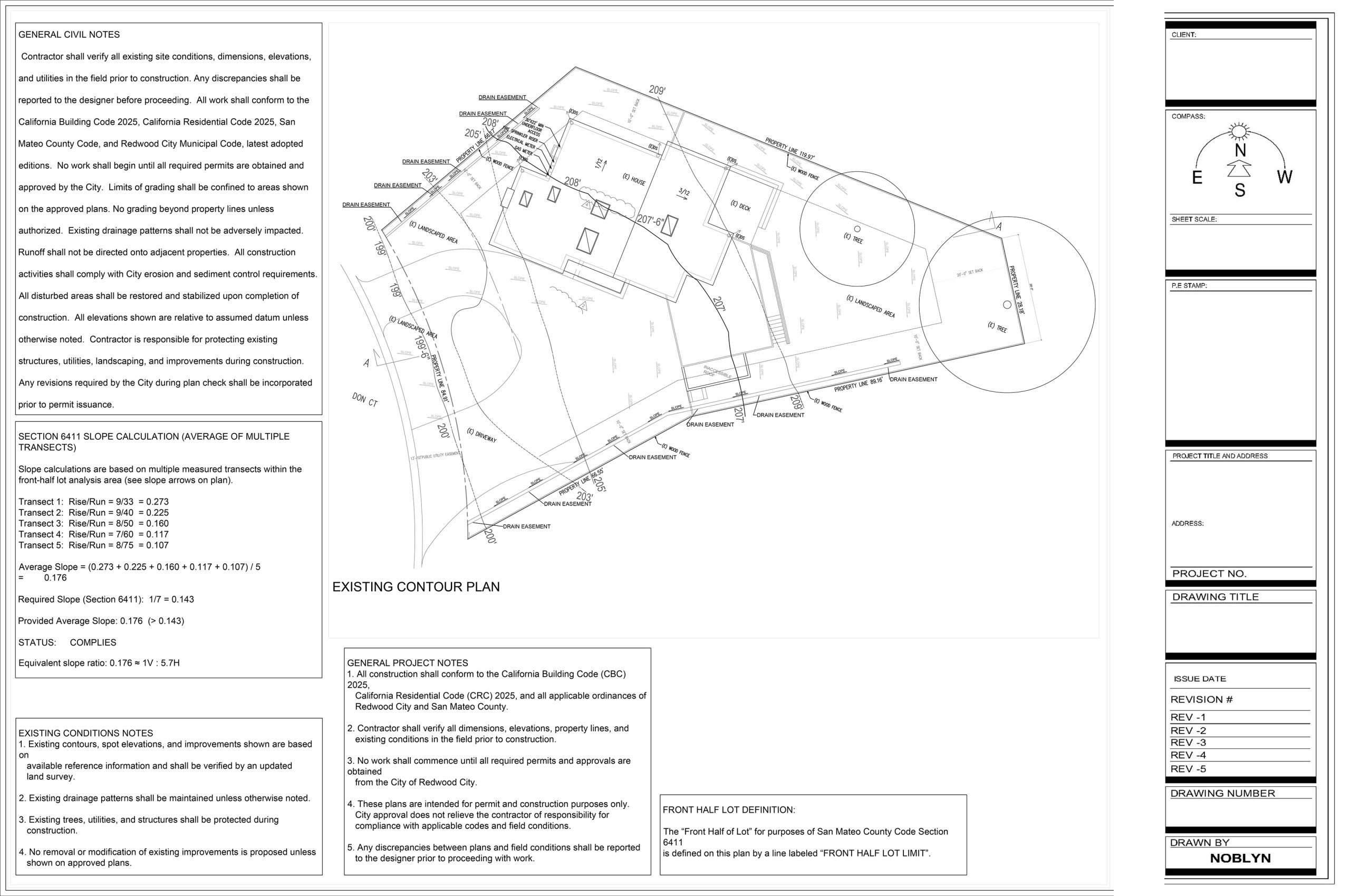

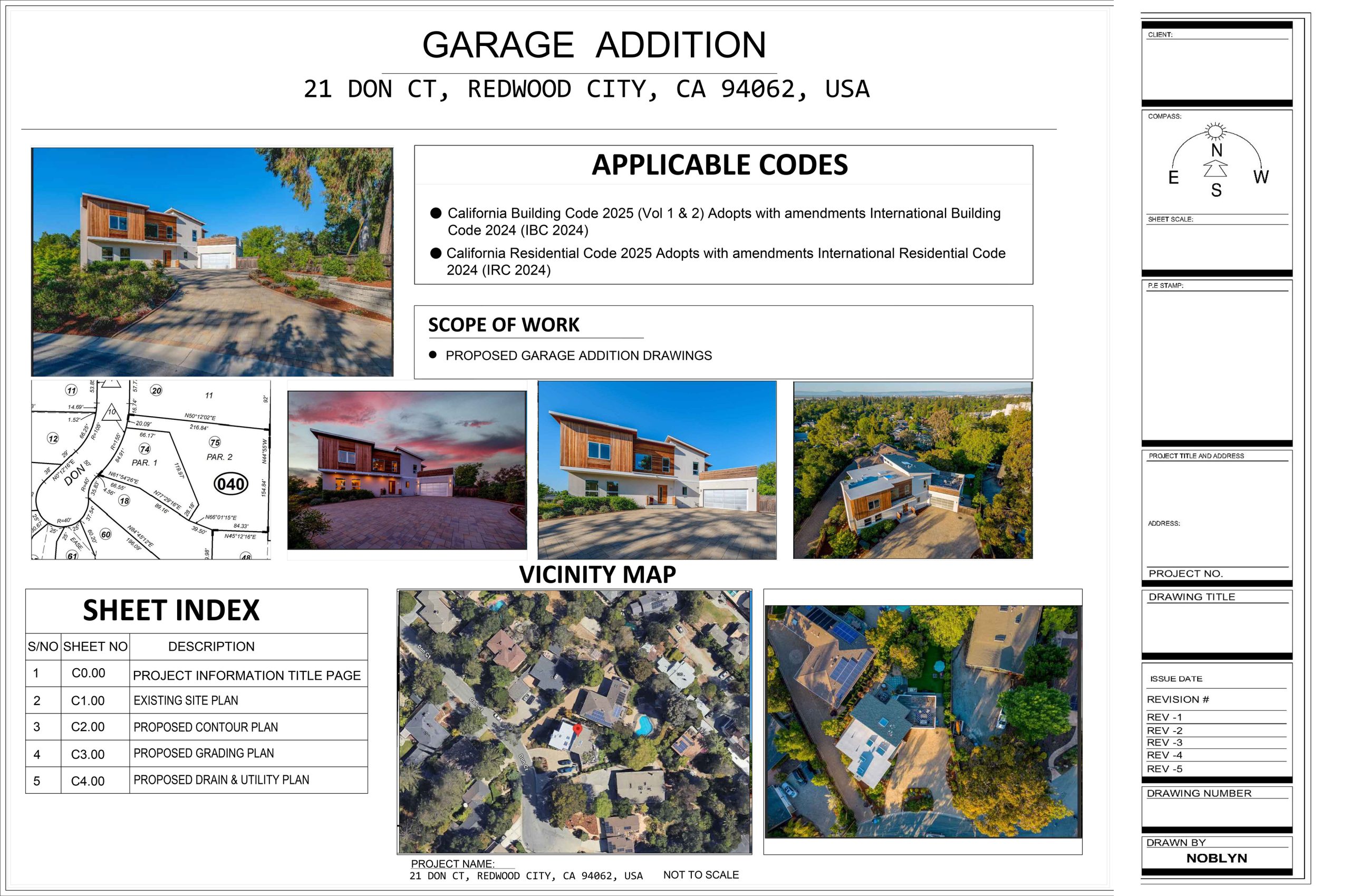

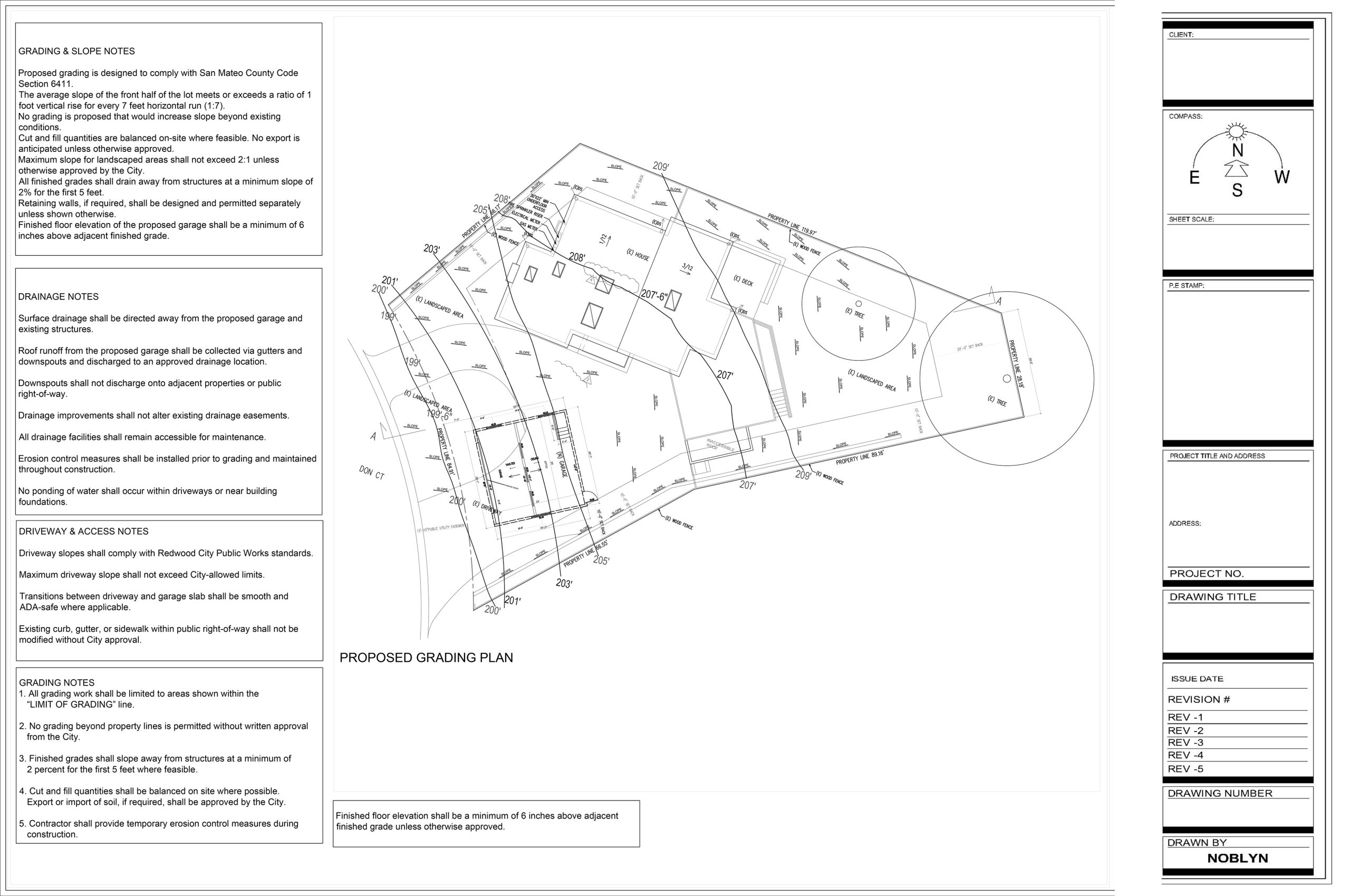

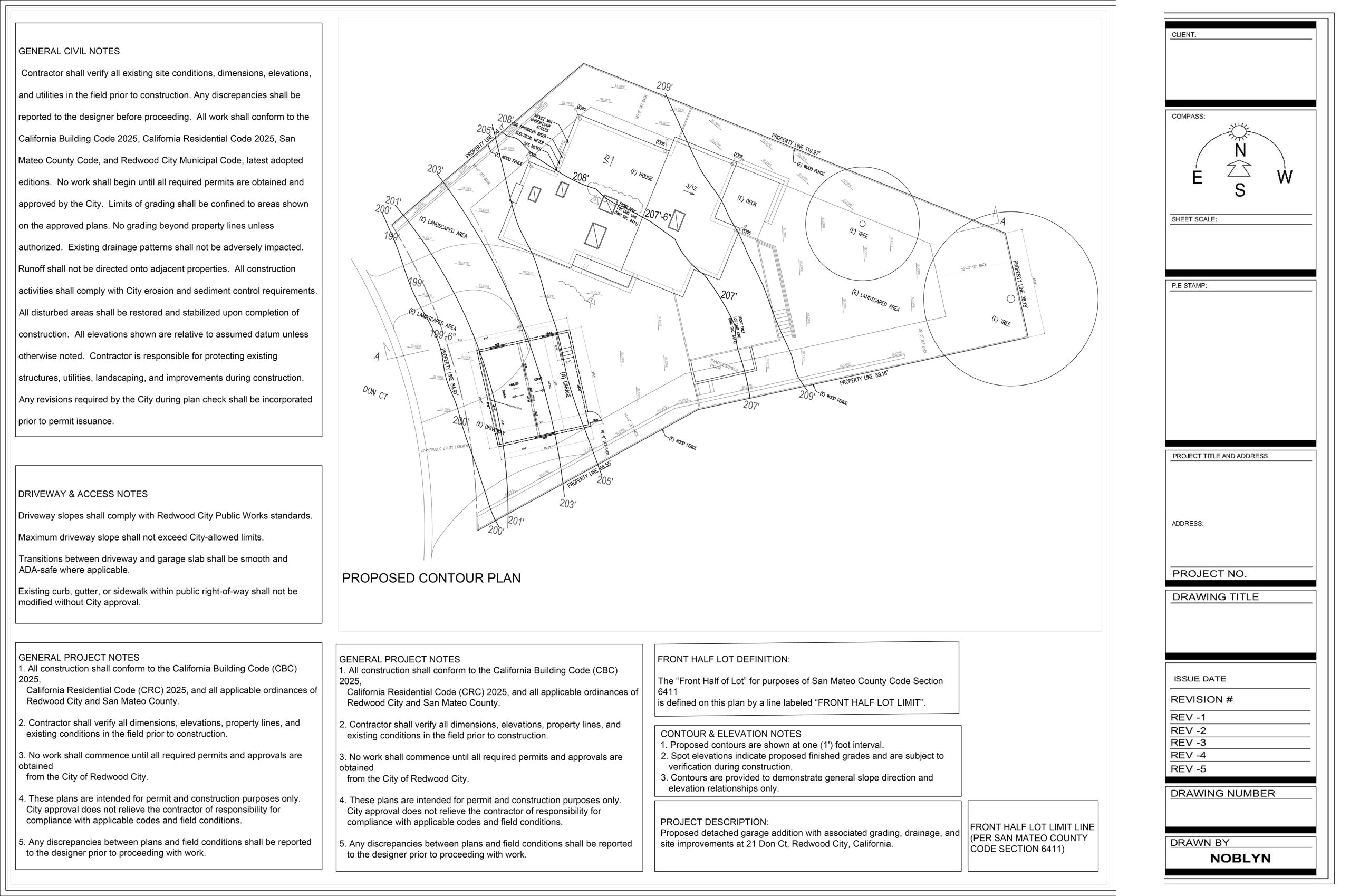

For this residential project in Redwood City, California, Noblyn LLC developed a comprehensive civil engineering and site planning package for a proposed two-car garage addition. Our scope of work included the meticulous preparation of existing and proposed contour plans, alongside detailed grading layouts to ensure proper site integration. To navigate complex topography, we executed precise Section 6411 slope calculations and designed a robust drainage plan that safely directs surface runoff away from existing structures while maintaining compliance with local easements. The entire drawing set was rigorously engineered to meet the stringent requirements of the 2025 California Building and Residential Codes, ensuring a seamless, permit-ready transition for the client.
- Category: Civil Engineering & SIte Planning
- Location: Redwood City, California
- Completion: 2025

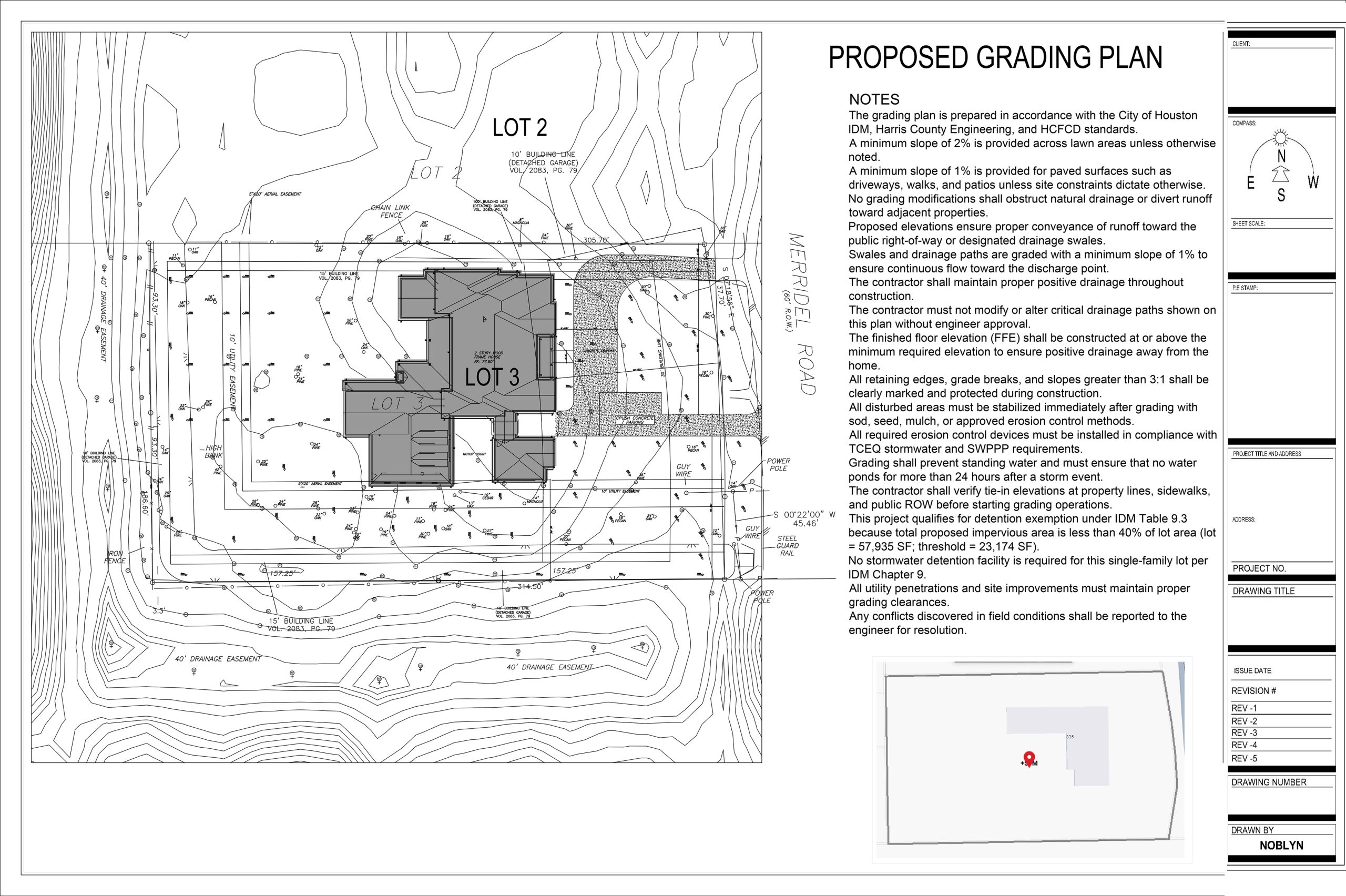

Houston Luxury Residential Civil Site Design
Houston Luxury Residential Civil Site Design

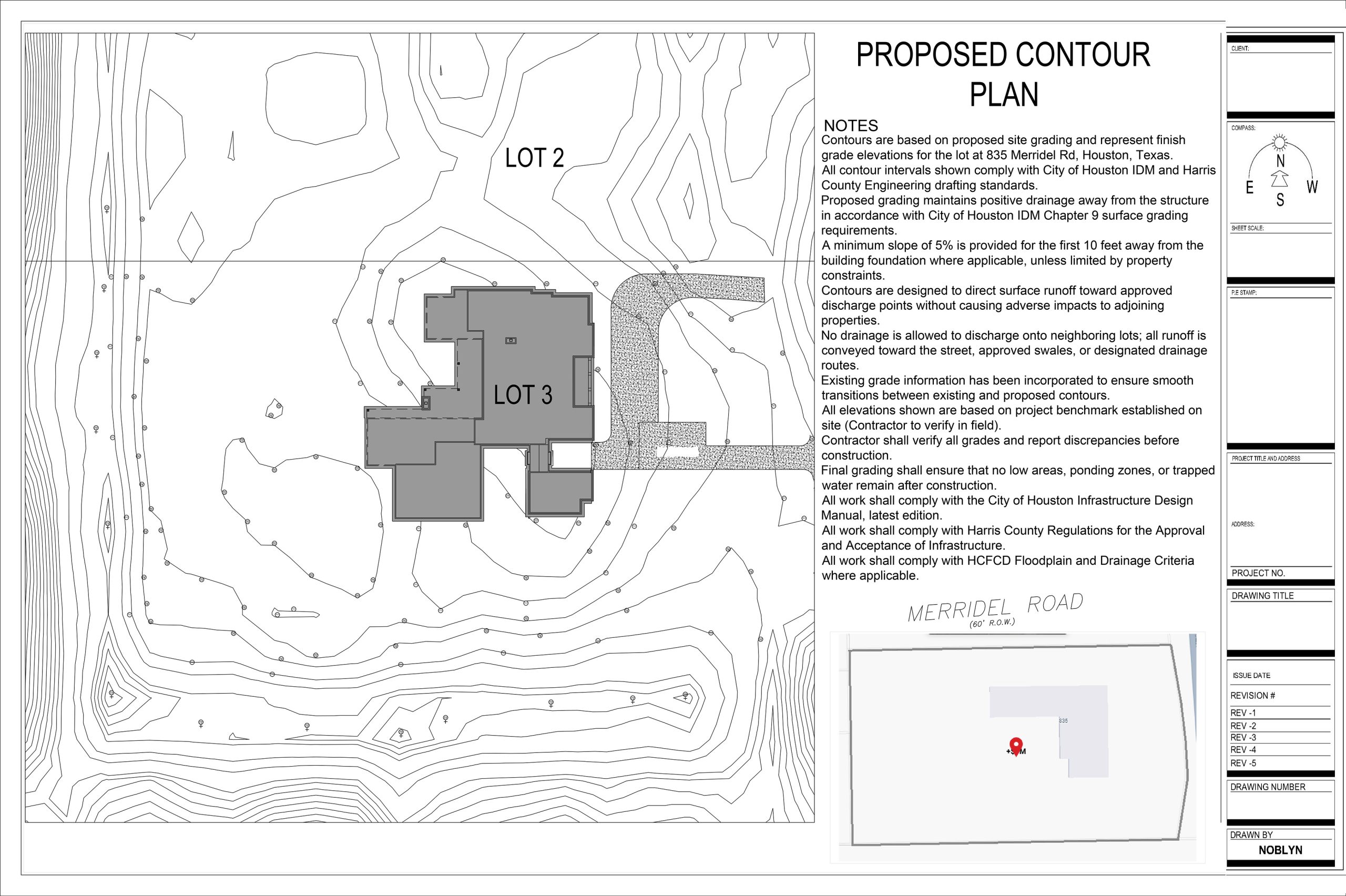

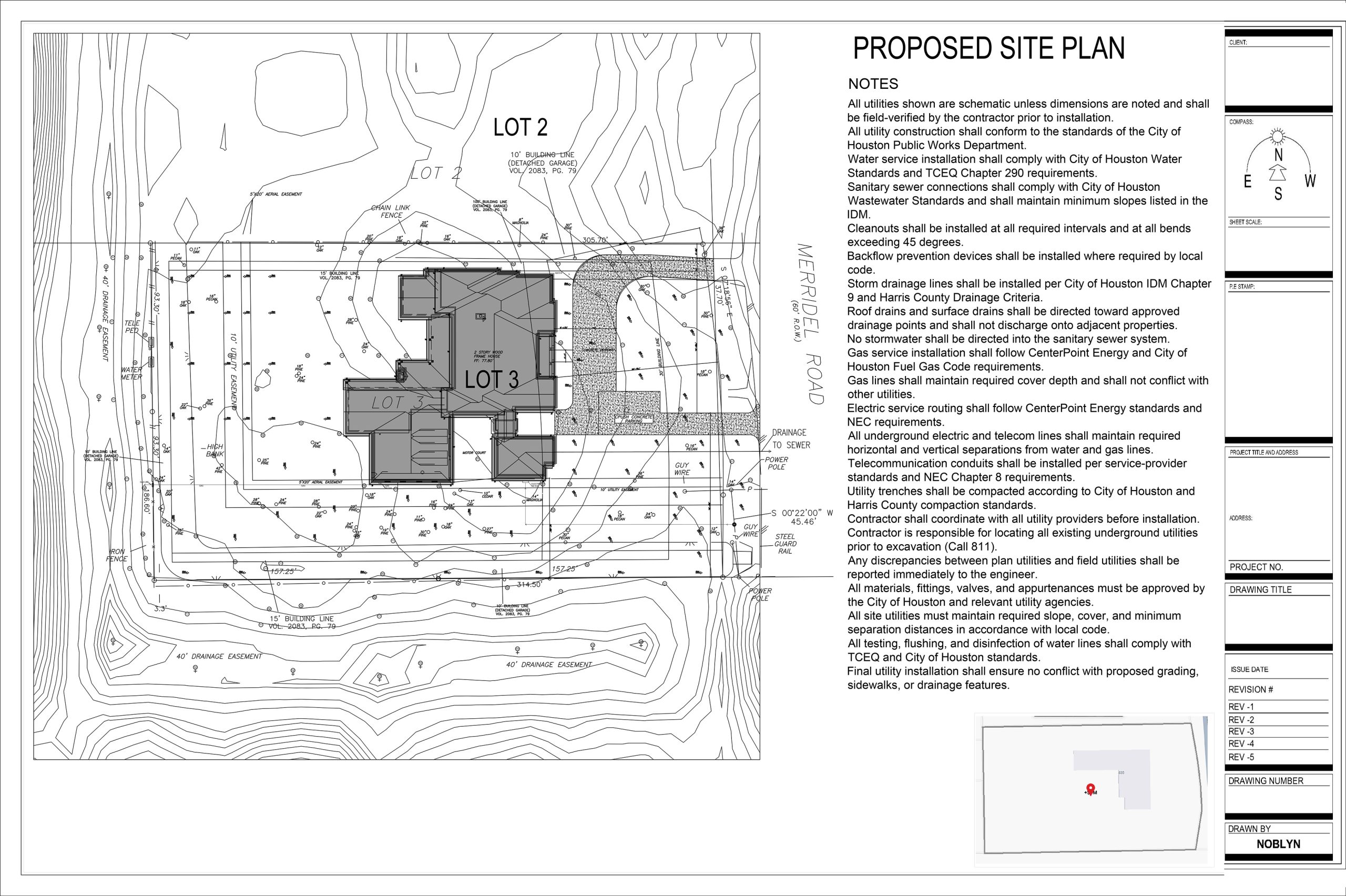

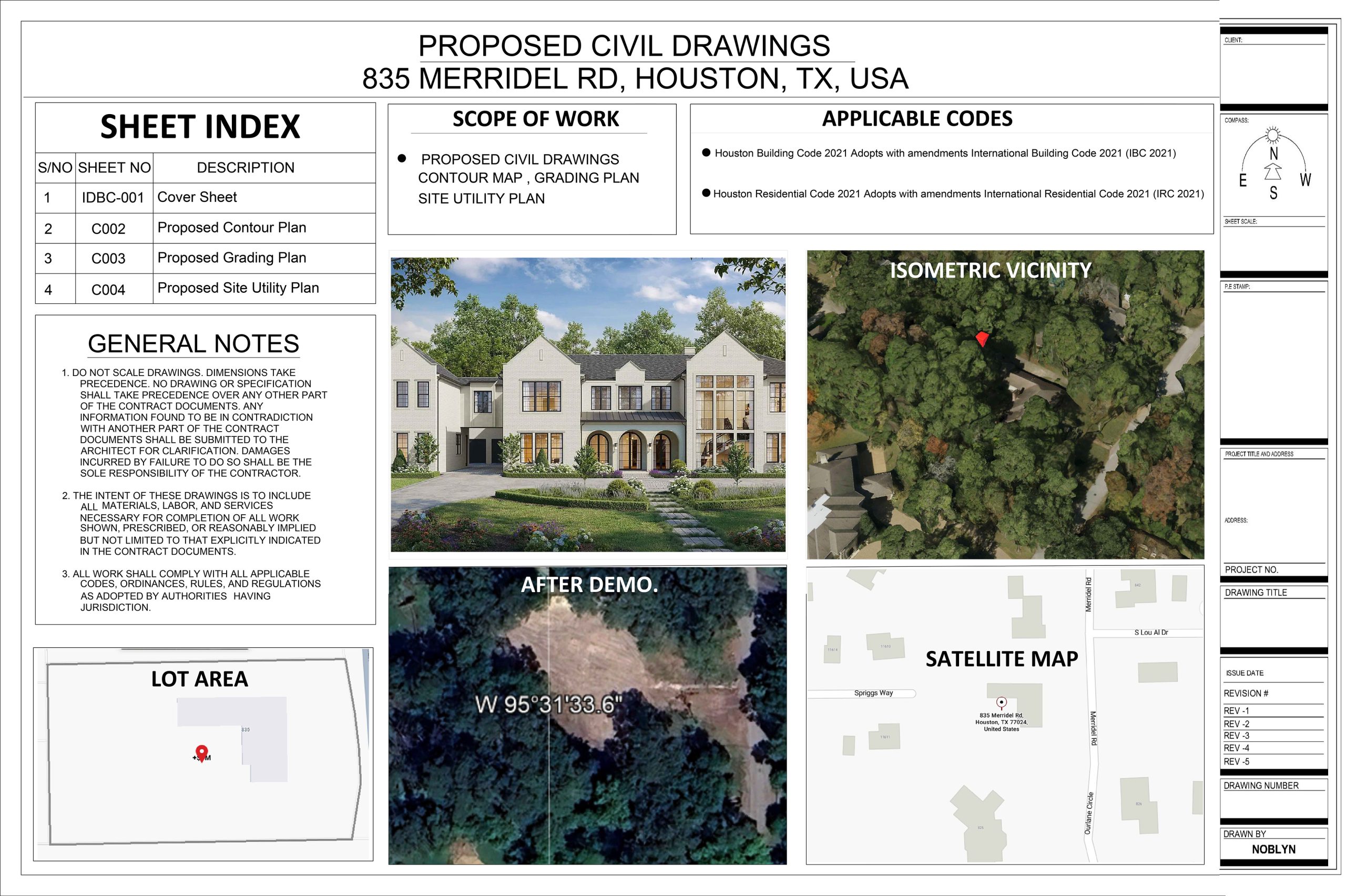

For this luxury double-story residential project located at 835 Merridel Rd in Houston, Texas, Noblyn LLC delivered a complete civil engineering drawing package. Our scope encompassed detailed contour mapping and a proposed grading plan engineered to City of Houston IDM and Harris County standards, ensuring optimal positive drainage and SWPPP compliance. Additionally, we developed a comprehensive site utility plan coordinating water, sanitary sewer, storm drainage, and electrical infrastructure. The entire civil set was meticulously designed to meet the rigorous requirements of the 2021 Houston Building and Residential Codes, providing the client with a fully compliant, permit-ready pathway to construction.
- Category: Civil Engineering & Drawing
- Location: Houston, Texas
- Completion: 2025
Custom Residential MEP Engineering Design
Custom Residential MEP Engineering Design

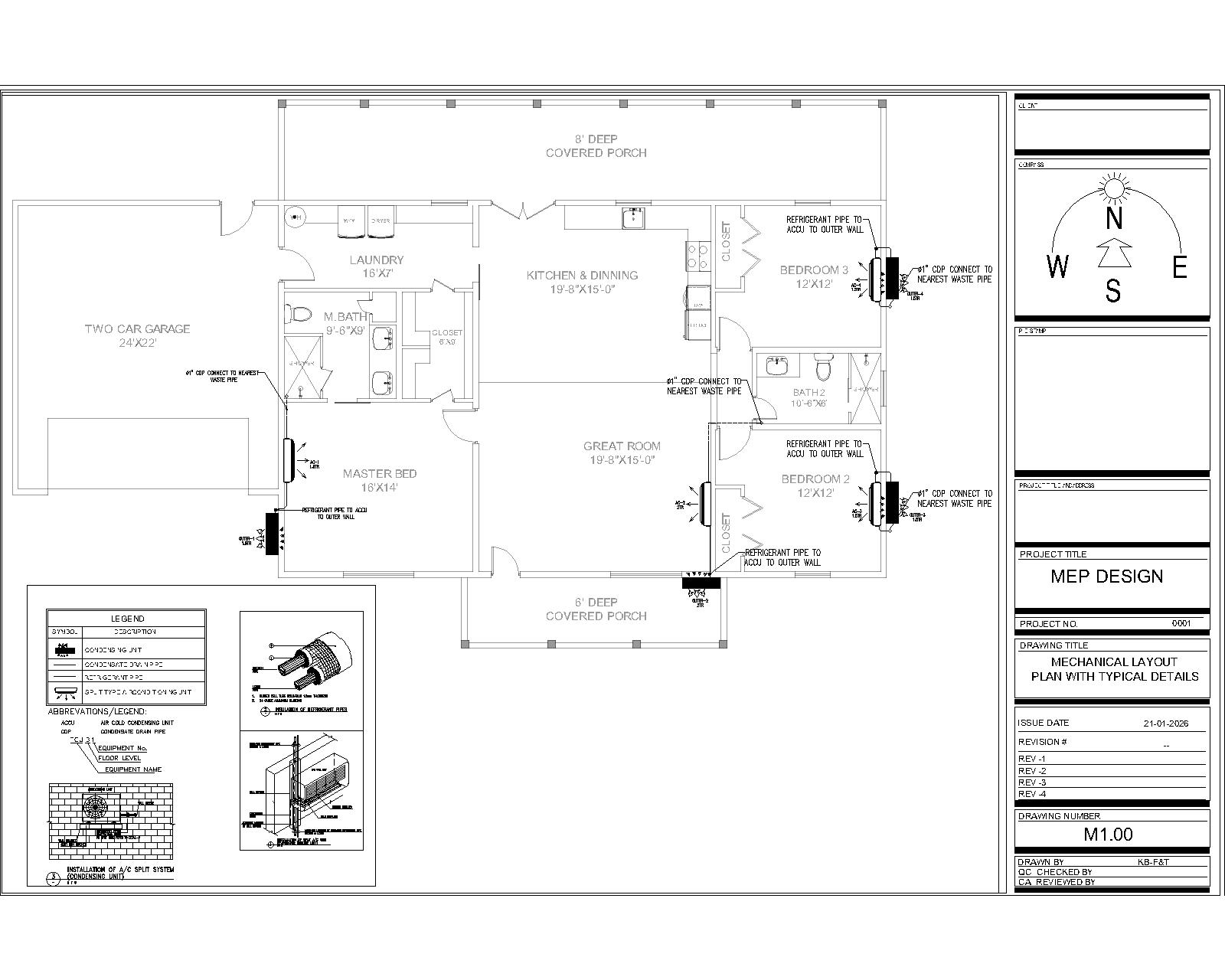

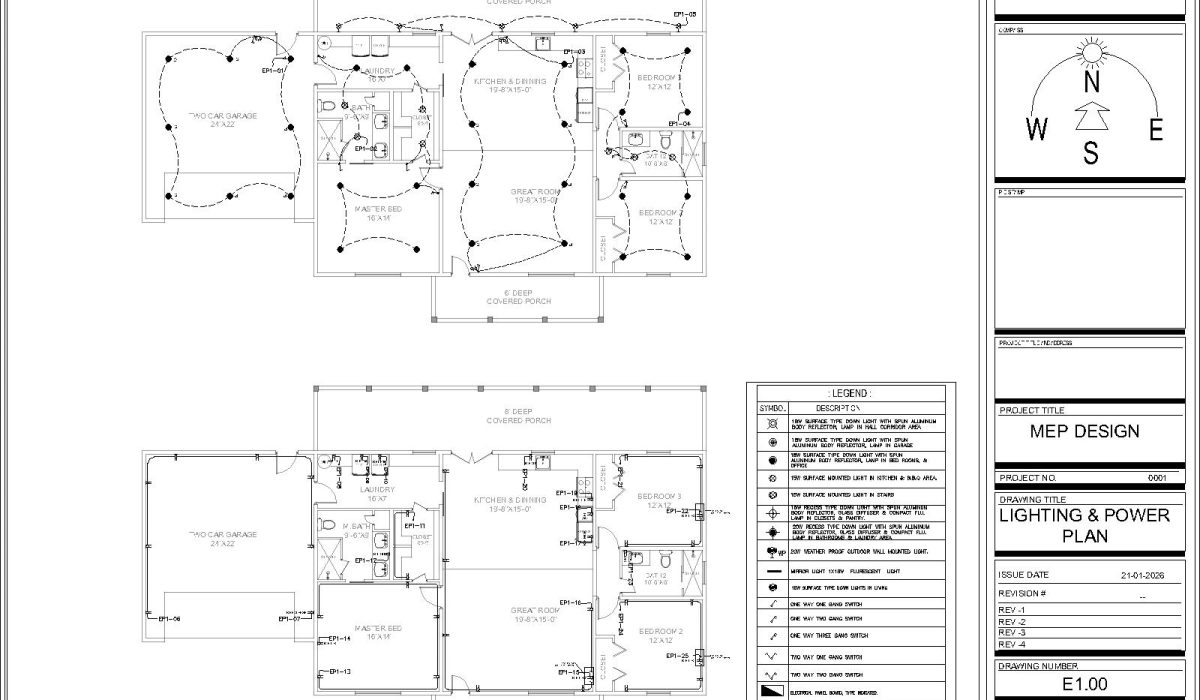

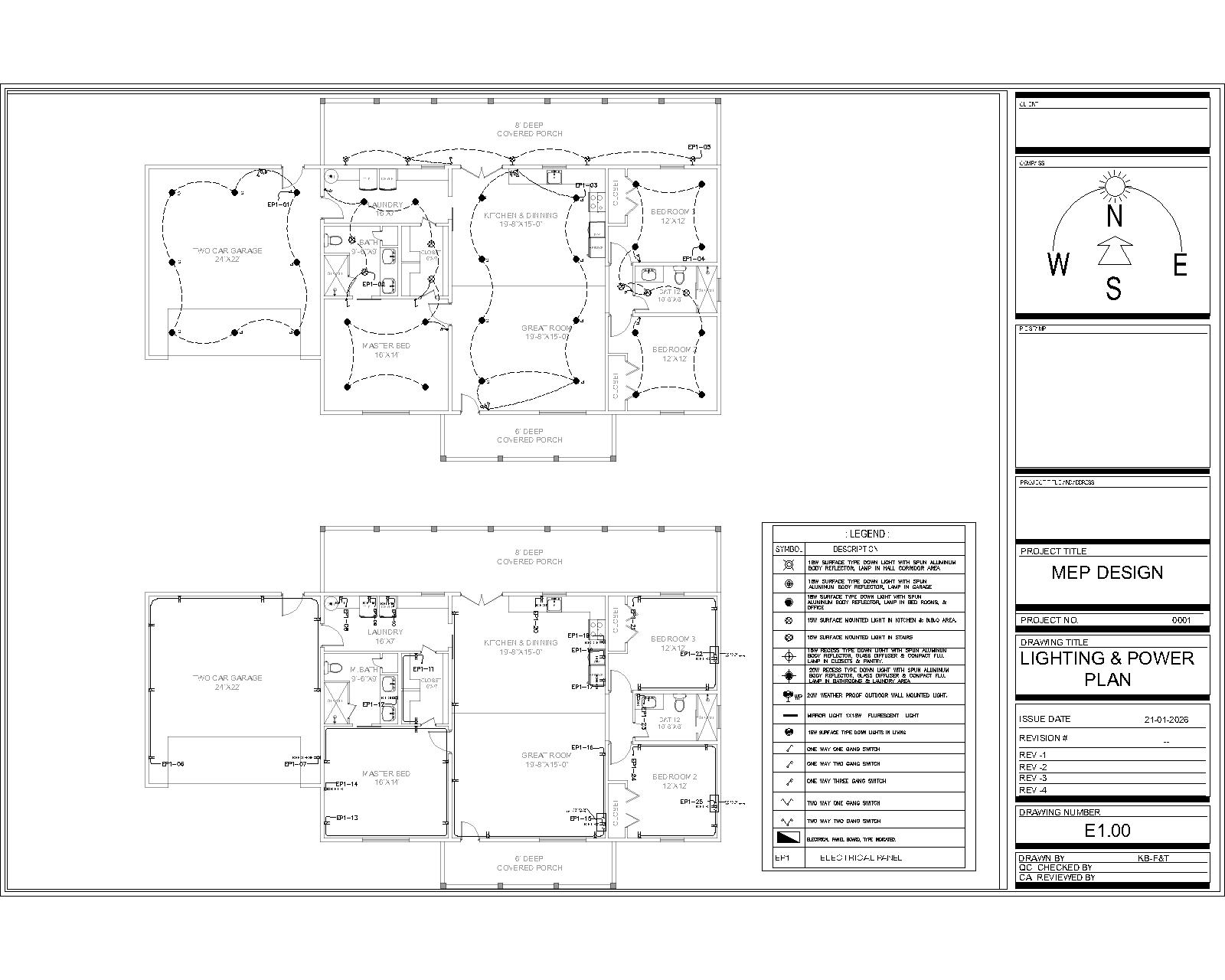

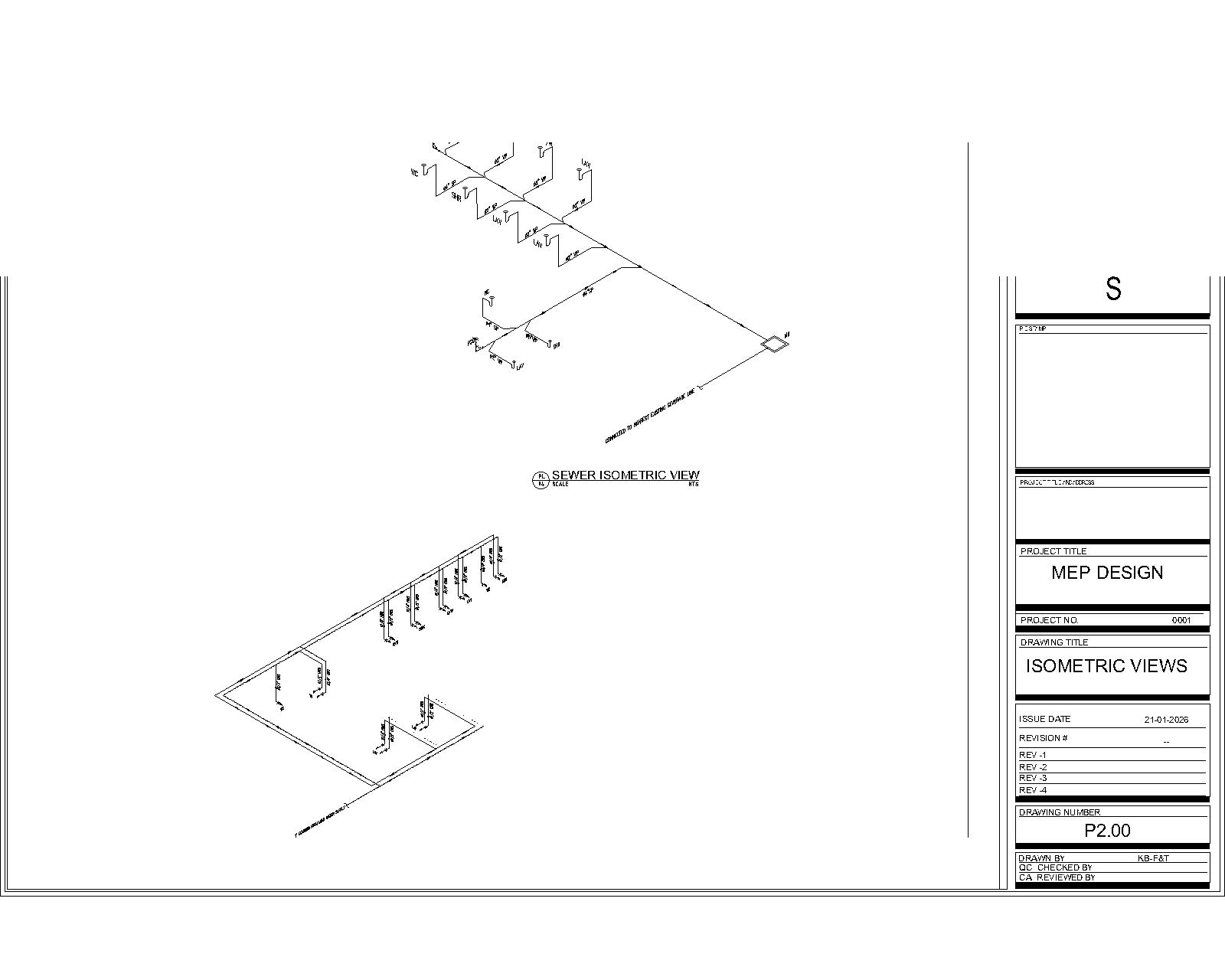

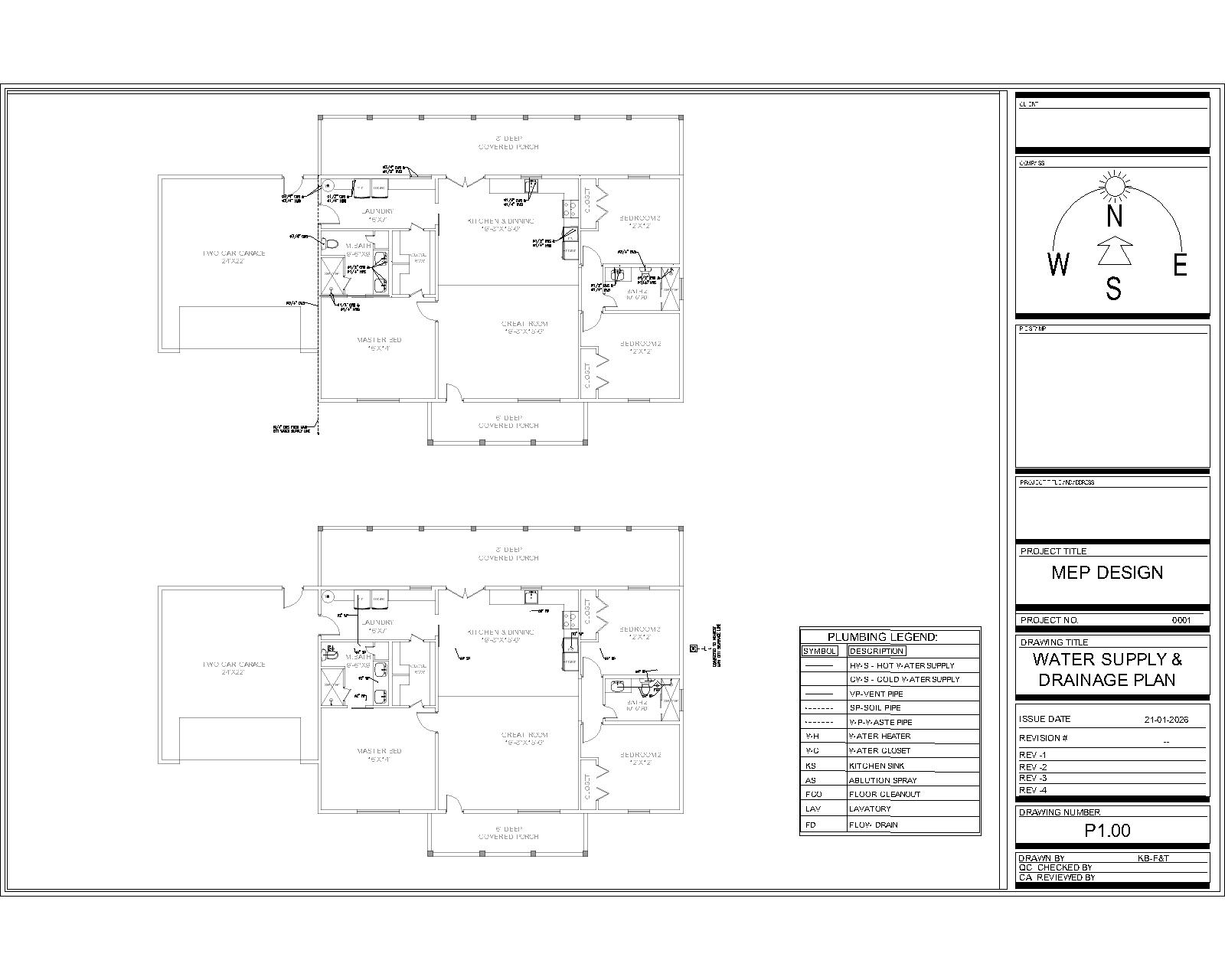

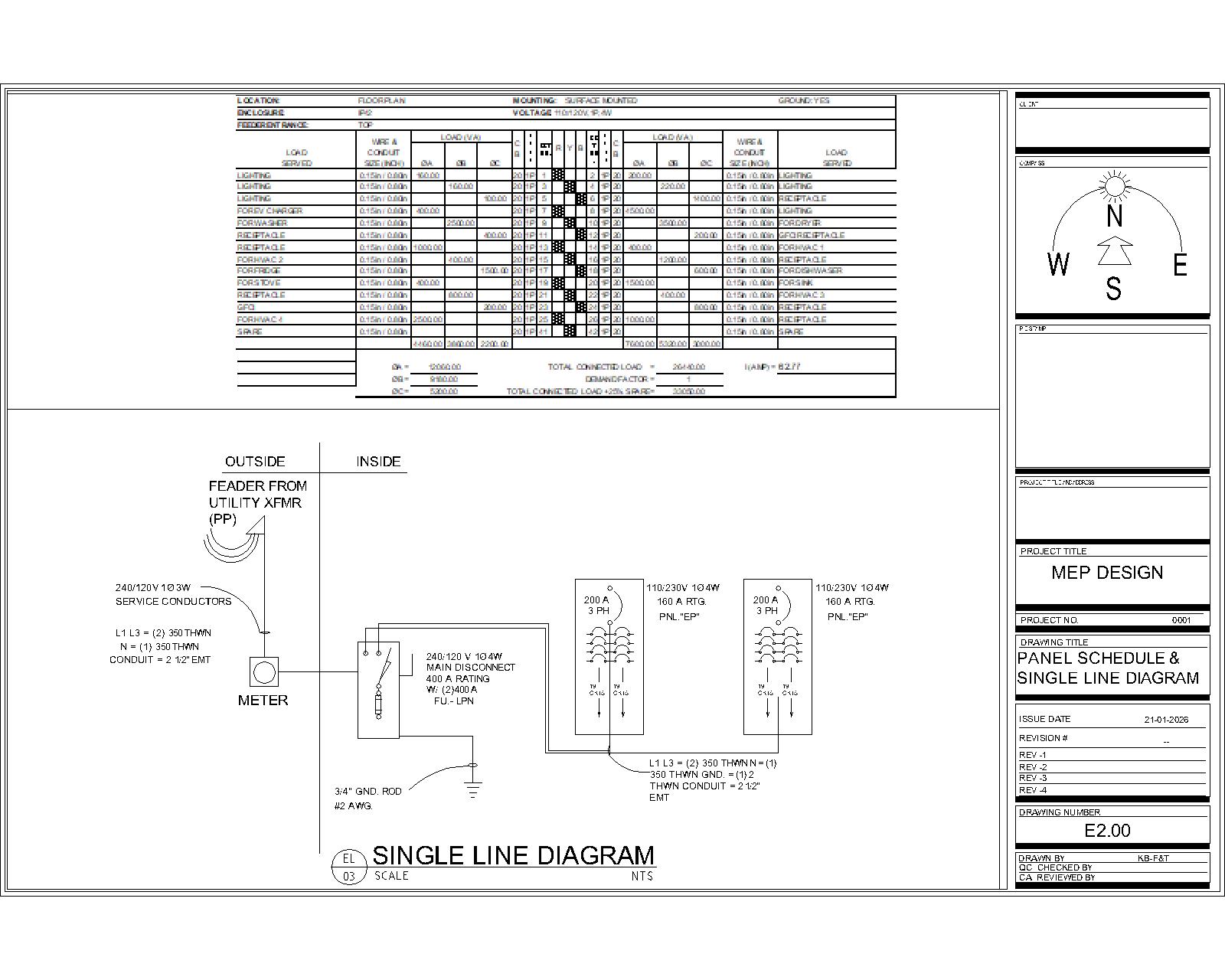

For this custom residential build, Noblyn LLC delivered a fully integrated, permit-ready Mechanical, Electrical, and Plumbing (MEP) design package. Our mechanical engineering scope detailed a highly efficient HVAC layout, precisely mapping split-system air conditioning units, refrigerant routing, and essential installation details. We engineered a robust electrical framework featuring comprehensive lighting and power floor plans, supported by a rigorous panel schedule, exact load calculations, and a complete single-line diagram. The plumbing design ensures flawless domestic water supply and wastewater management, detailed through accurate floor plans and advanced 3D isometric sewer views for exact contractor execution. This meticulously coordinated MEP set eliminates field clashes and ensures strict code compliance, providing a seamless transition from engineering design to construction.
- Category: MEP Design
- Location: Austin, Texas
- Completion: 2026

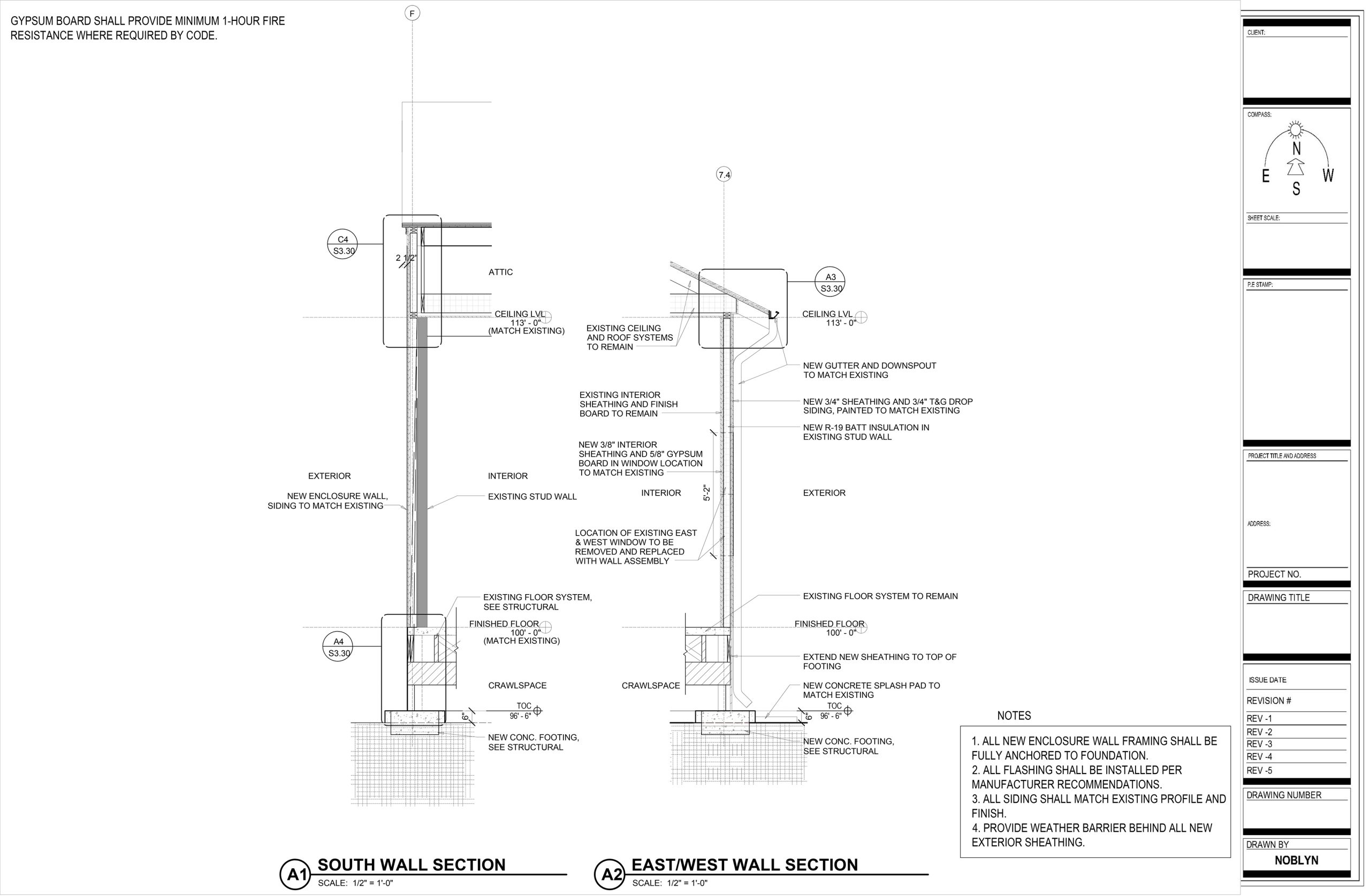

Naval Facility Modification & Structural Shop Drawings
Naval Facility Modification & Structural Shop Drawings

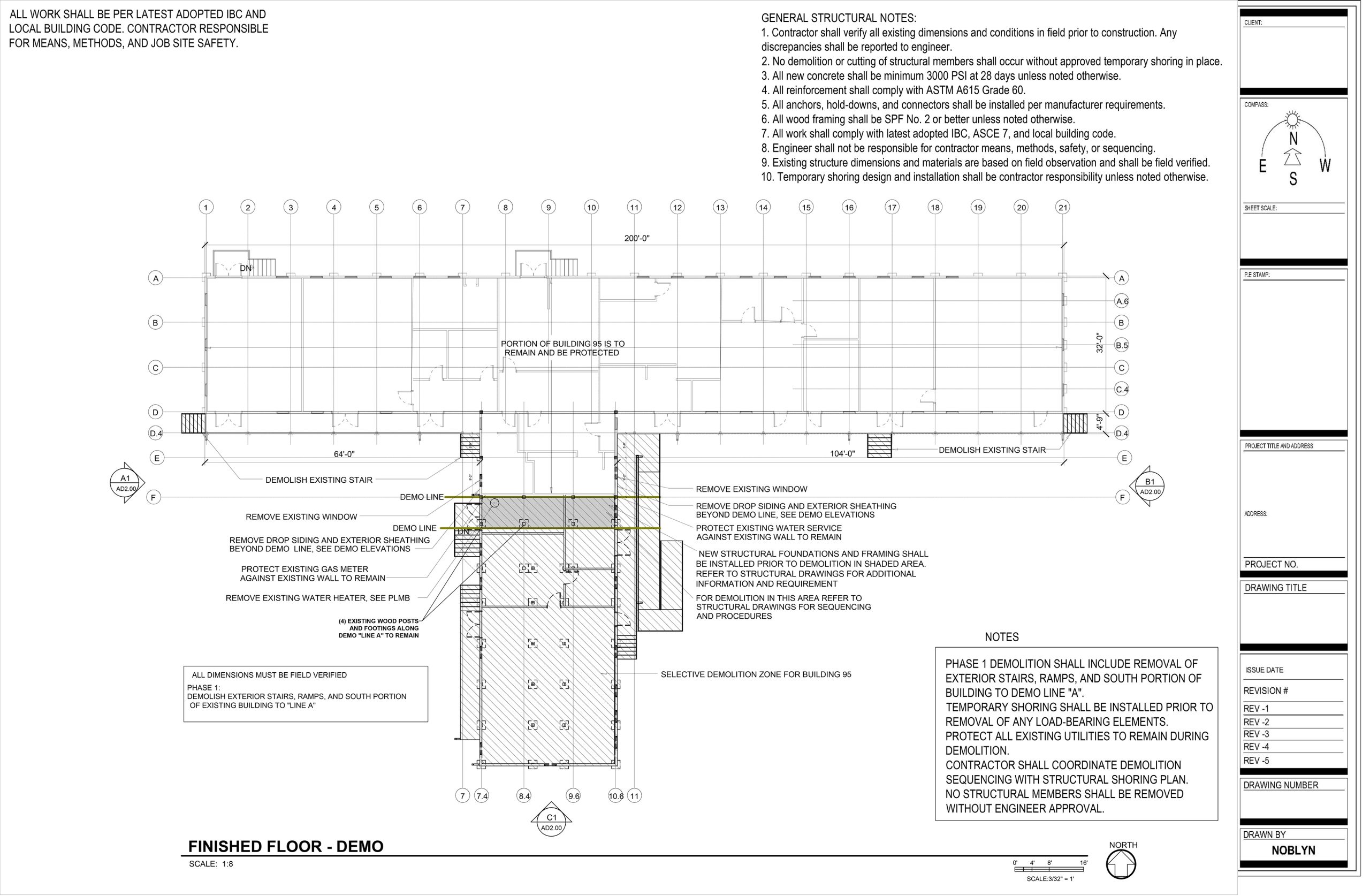

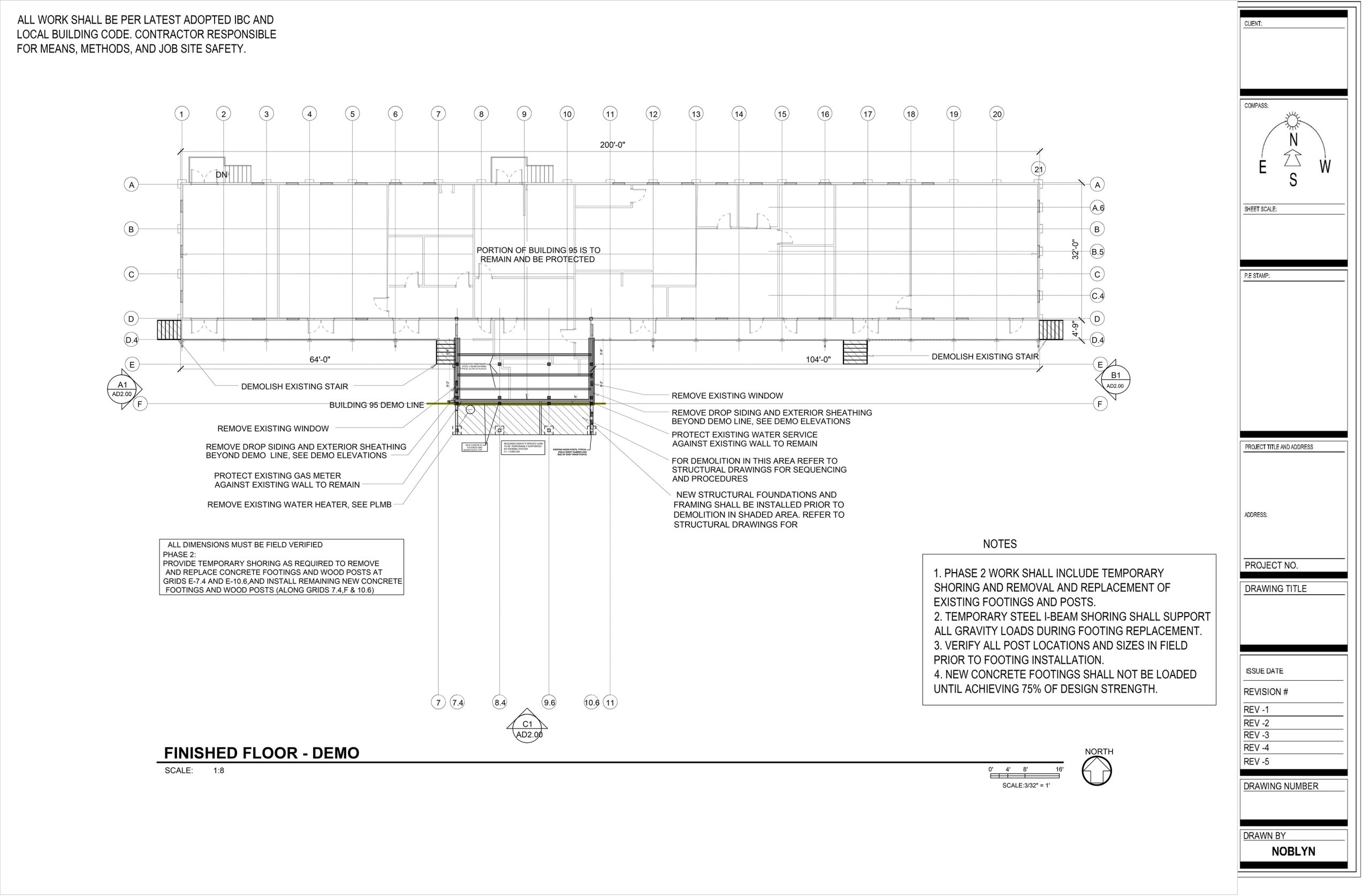

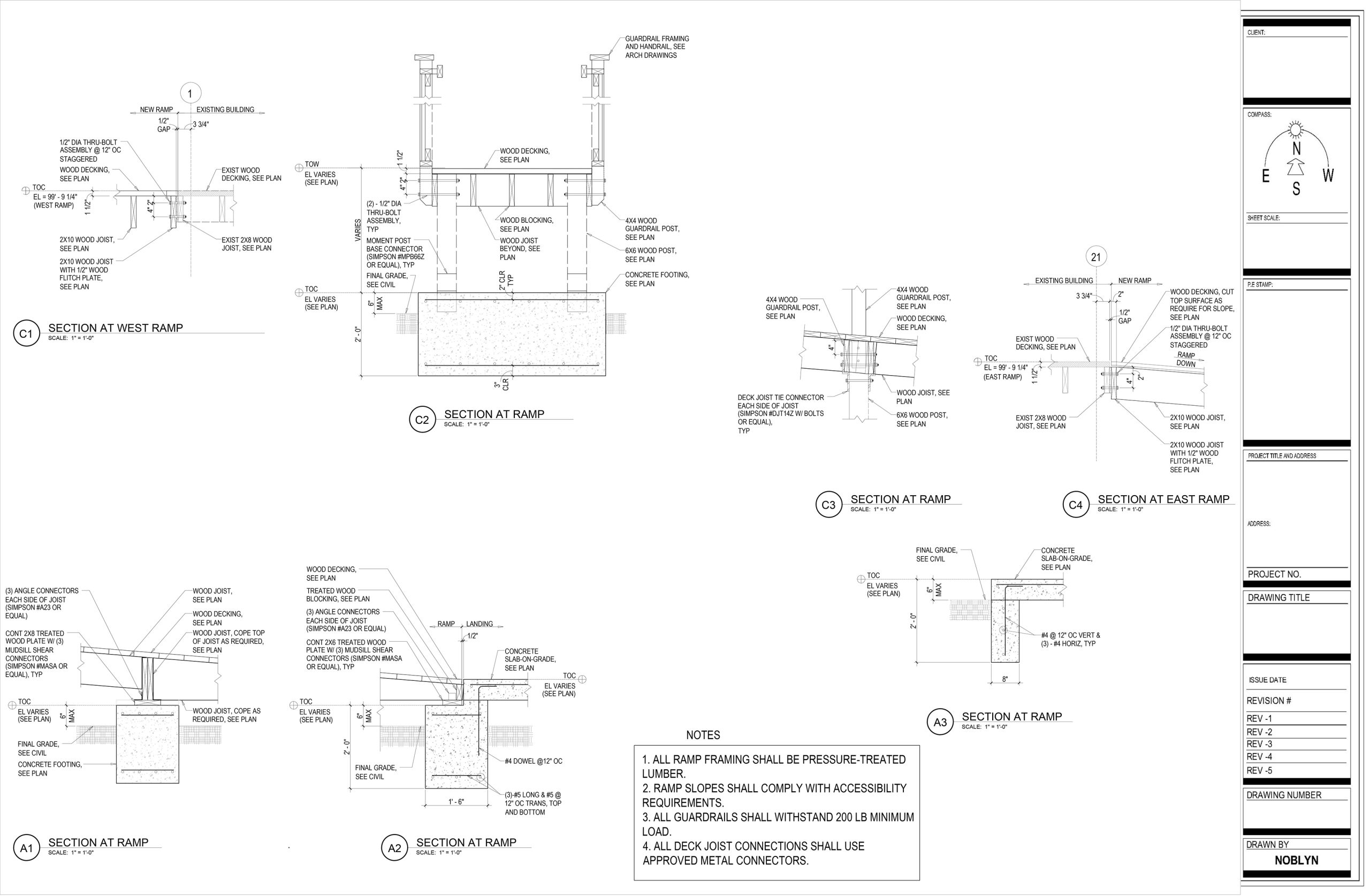

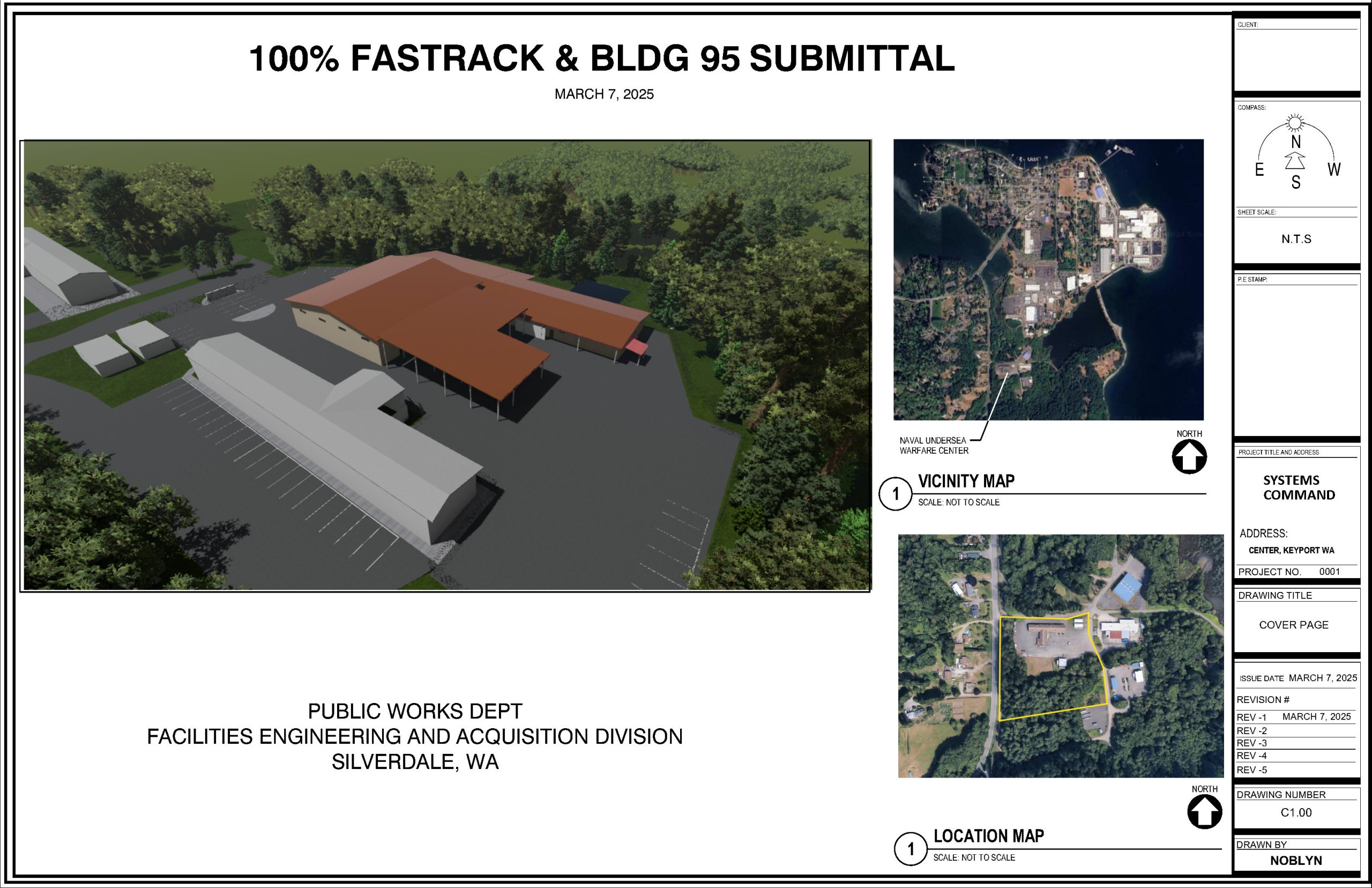

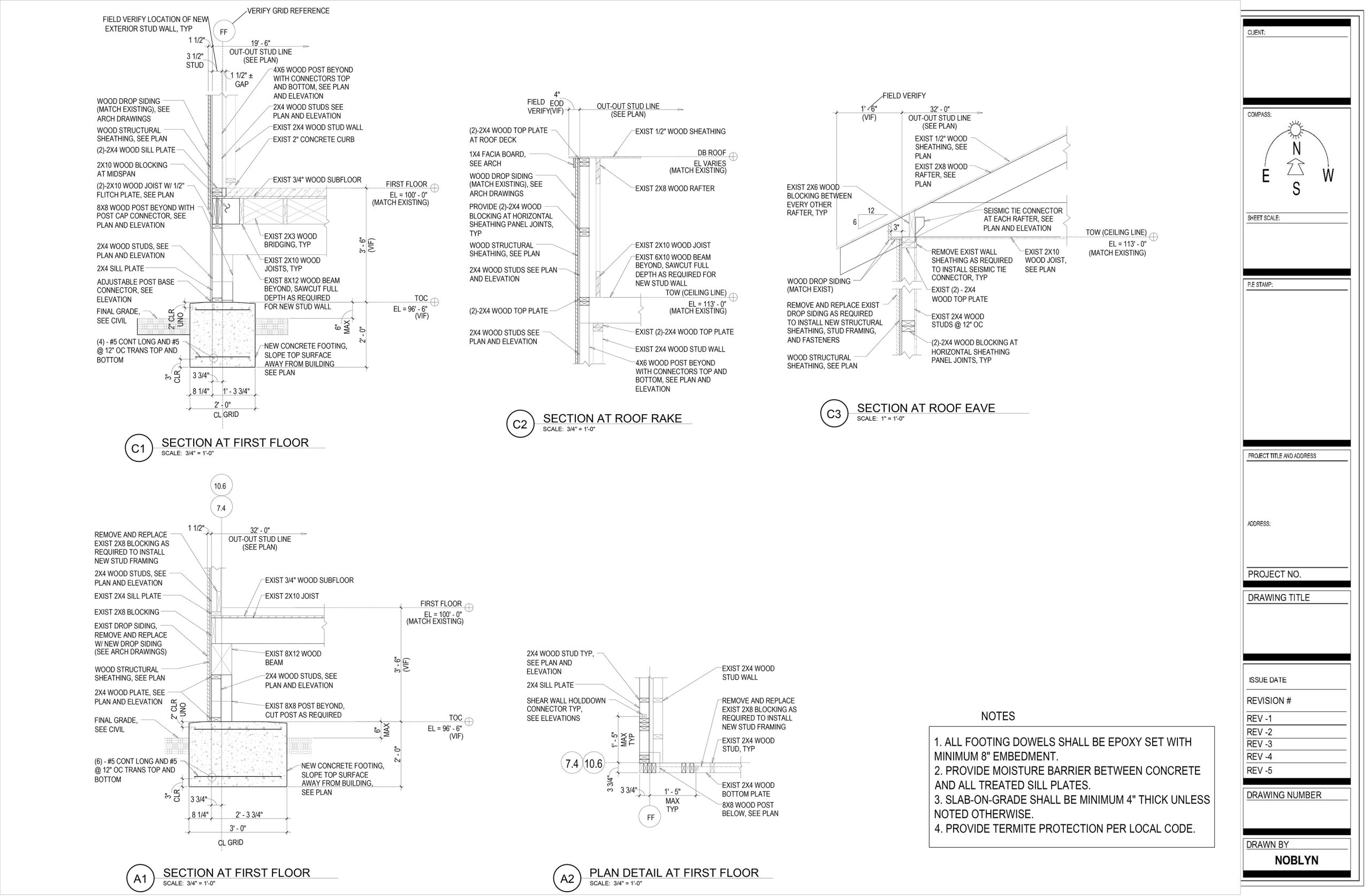

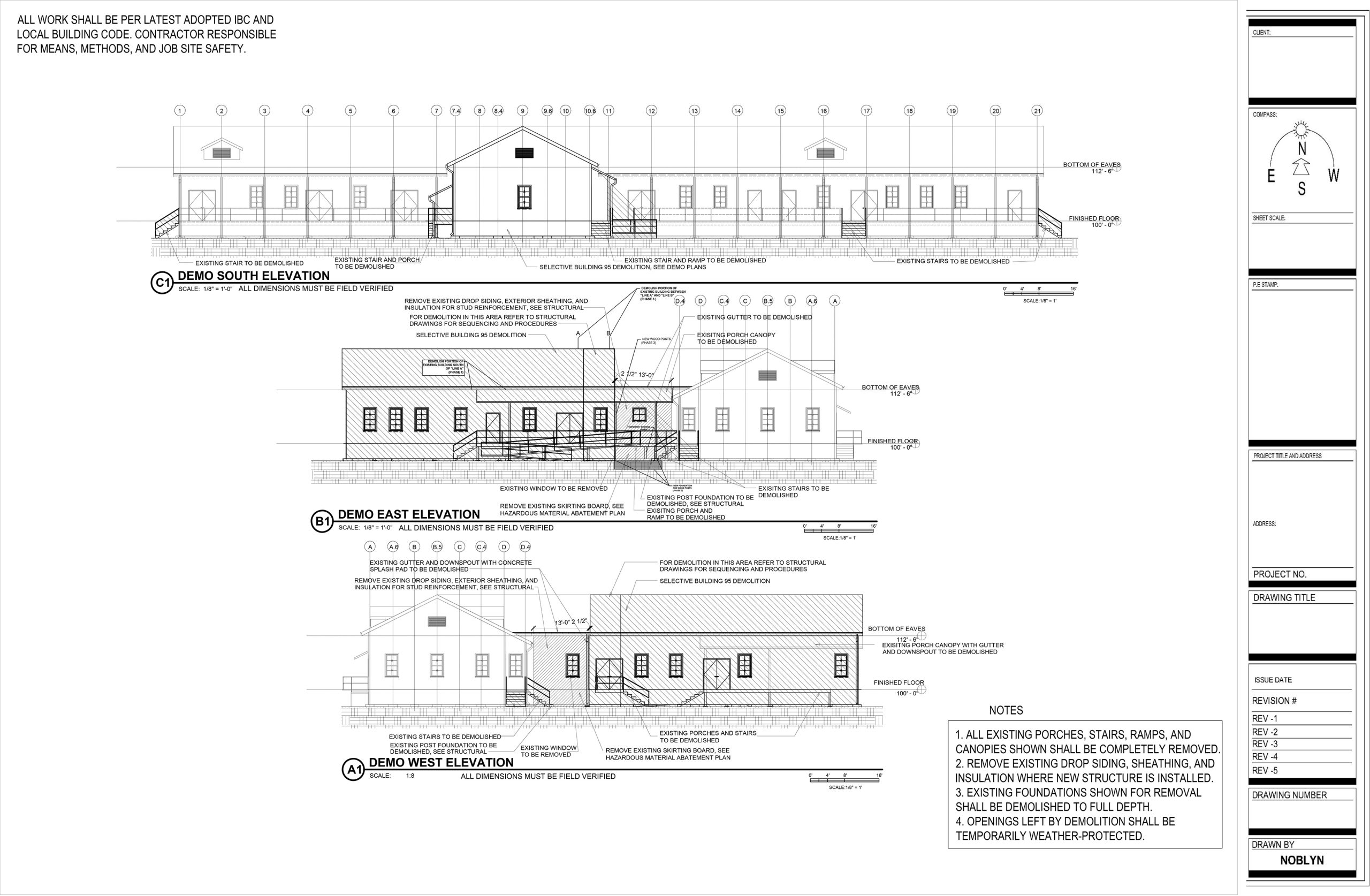

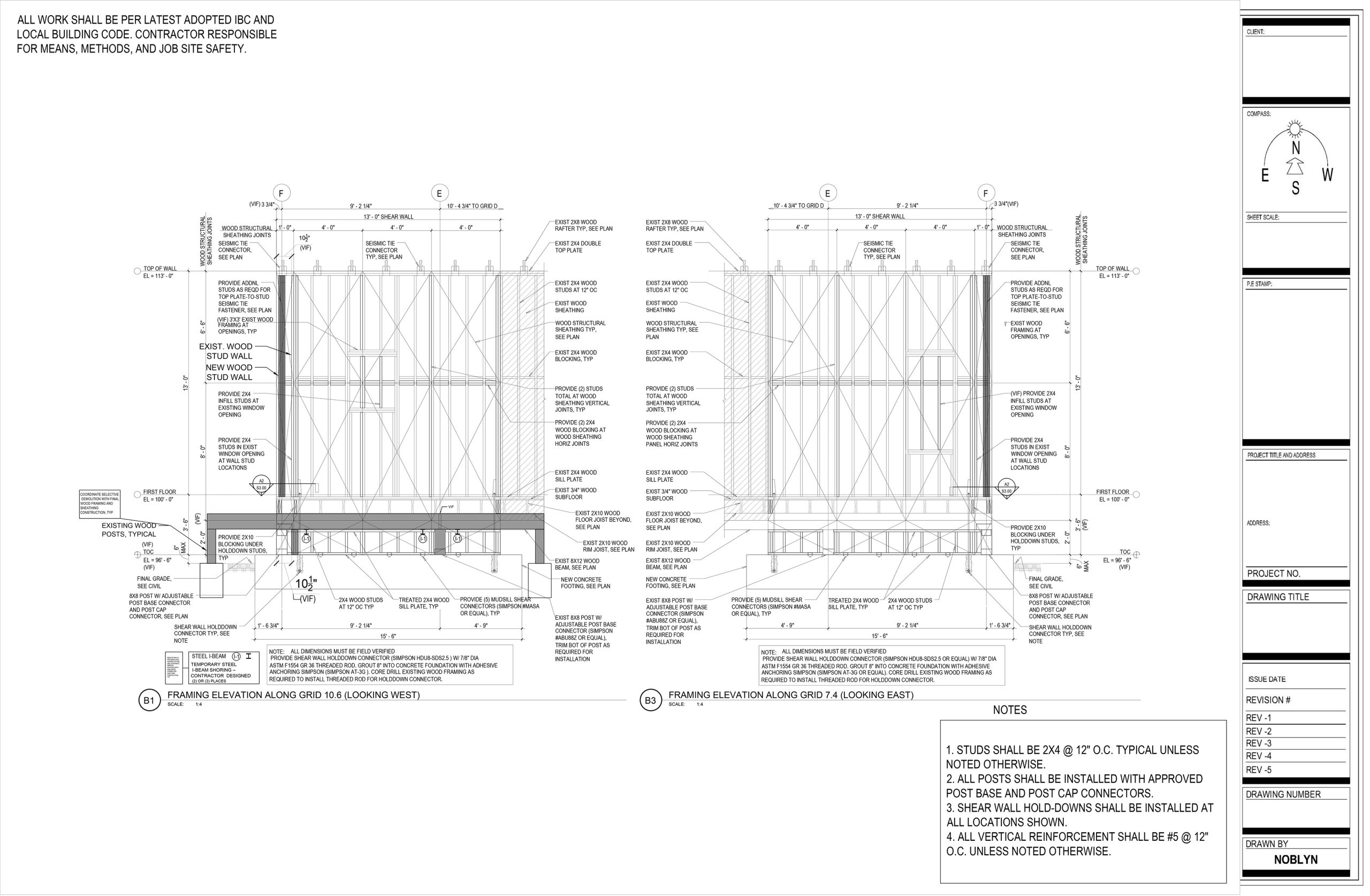

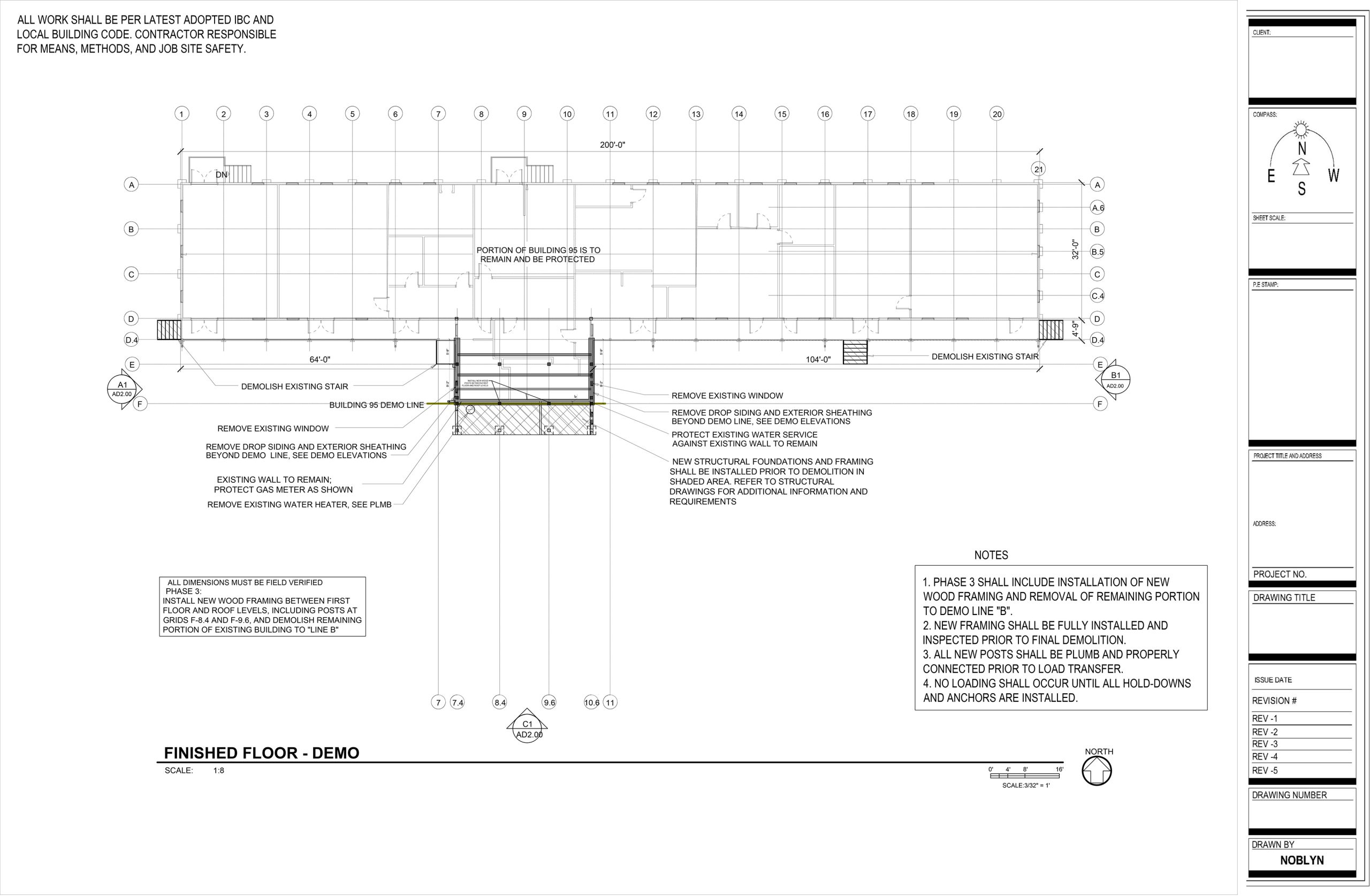

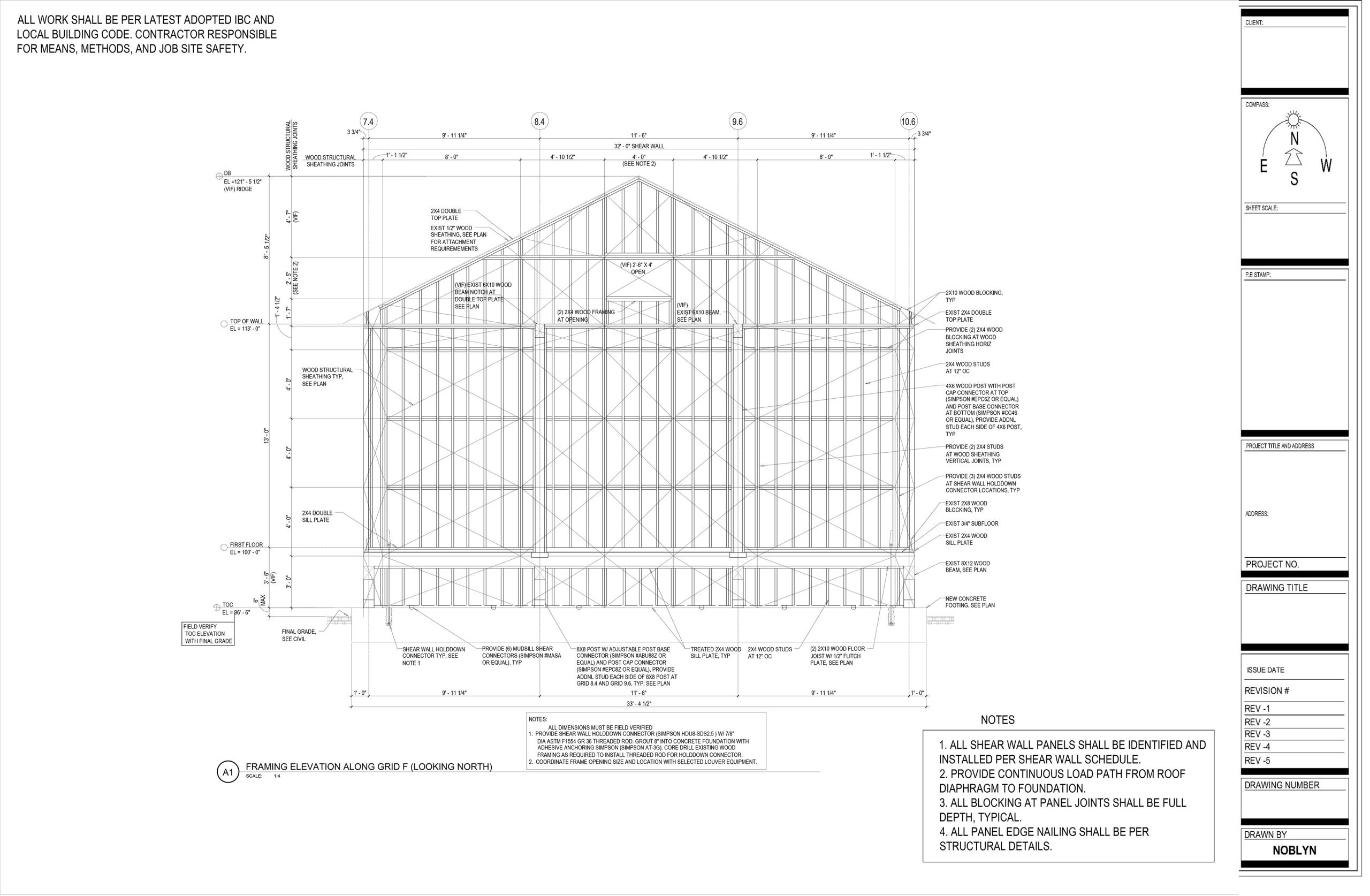

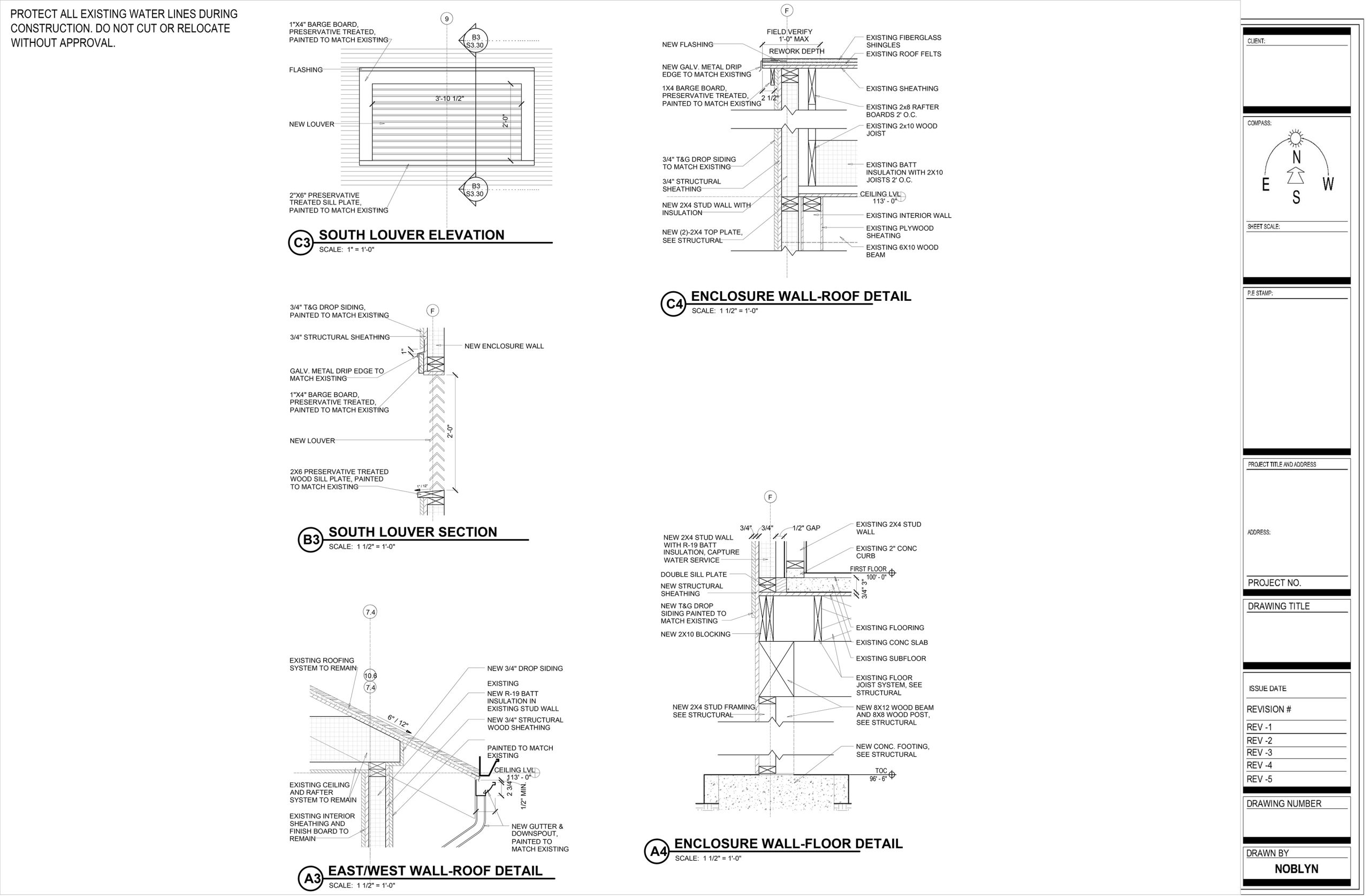

For this fast-track modernization project at the Naval Undersea Warfare Center in Silverdale, Washington, Noblyn LLC delivered a comprehensive structural shop drawing and demolition submittal for Building 95. Our scope involved highly detailed, multi-phase demolition layouts that carefully mapped the removal of existing architectural elements and concrete footings while engineering temporary shoring to ensure uninterrupted structural stability. To support the facility’s extensive upgrade, we engineered robust new structural wood framing elevations featuring strategically placed shear wall hold-downs, continuous load paths, and precise seismic tie connections. The package also provided meticulous architectural detailing for accessibility-compliant, pressure-treated exterior ramps and code-compliant, fire-resistant wall assemblies. Engineered in strict accordance with the latest International Building Code (IBC), this precision-drafted set ensured a safe, perfectly sequenced execution for a critical public works asset.
- Category: Strcutural Drawings
- Location: Silverdale, Washington
- Completion: 2026

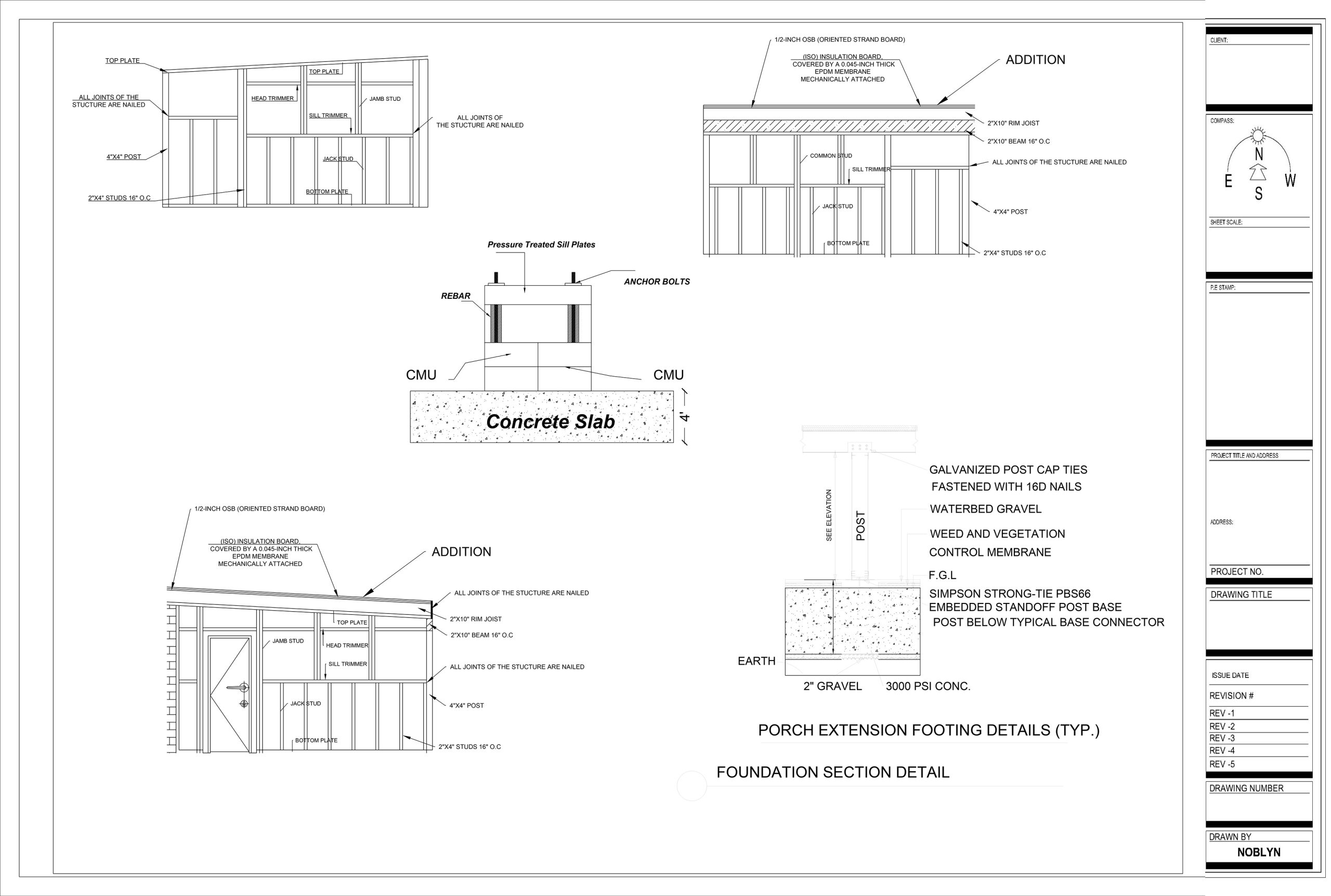

Custom Detached Garage & Bonus Room Framing
Custom Detached Garage & Bonus Room Framing

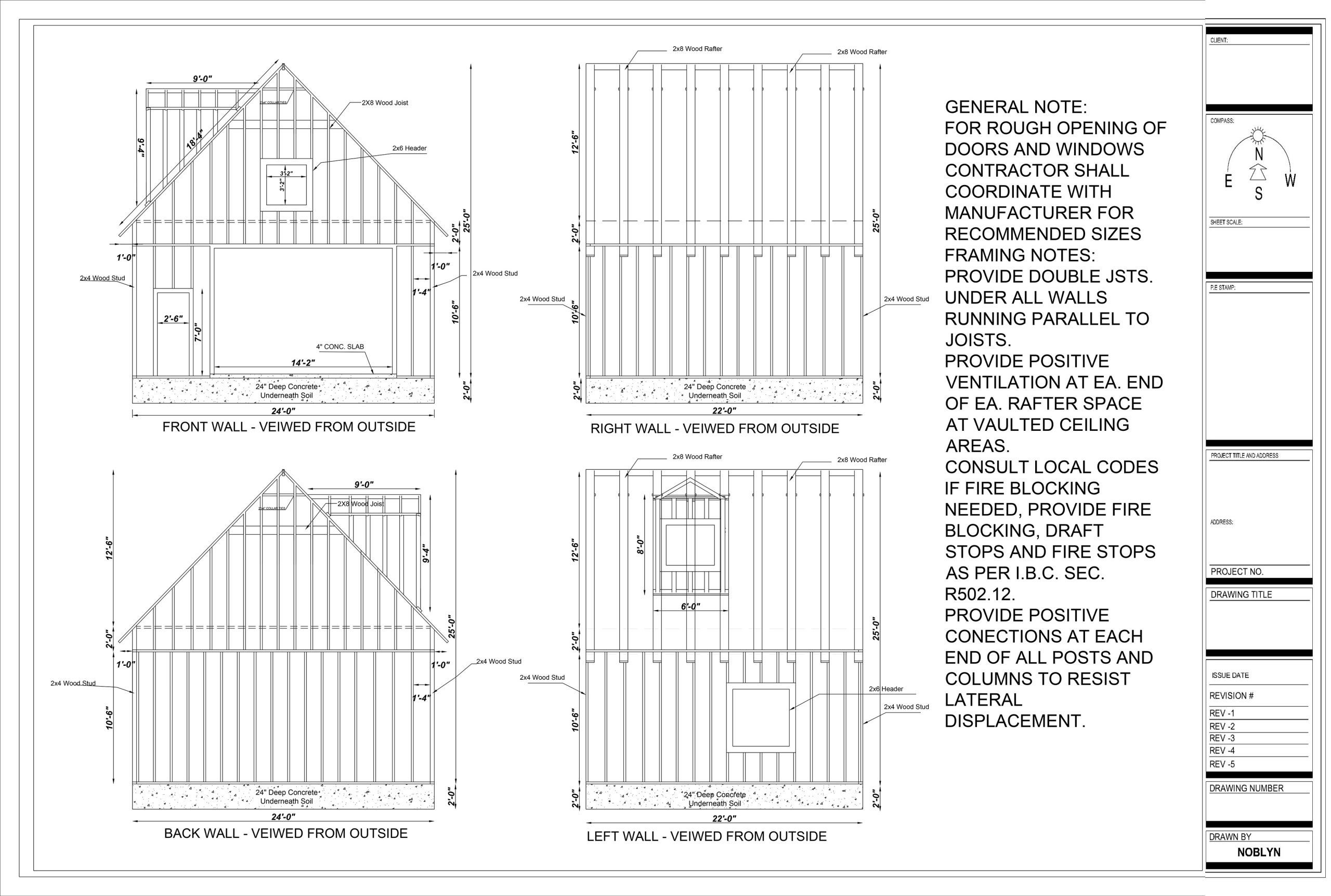

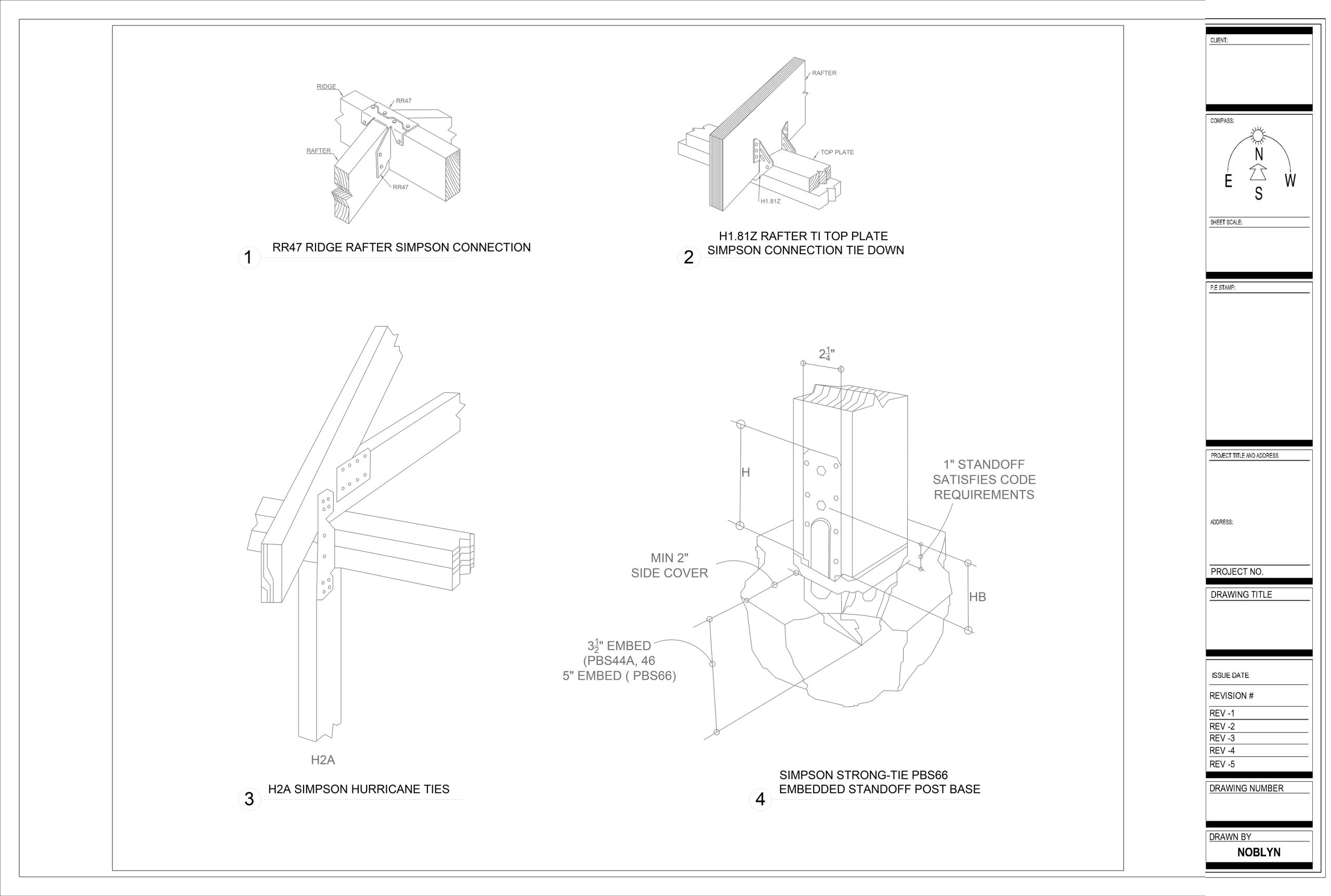

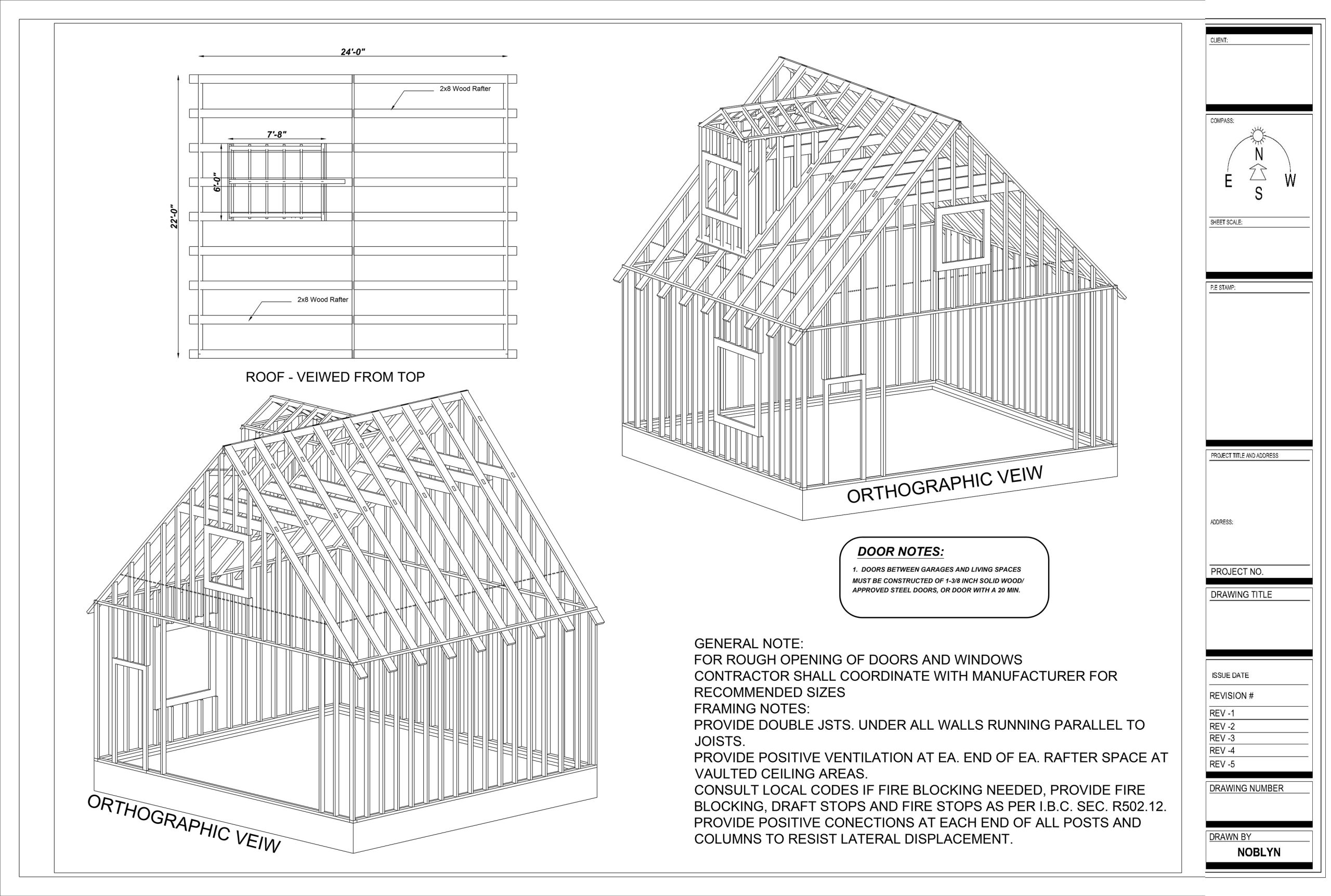

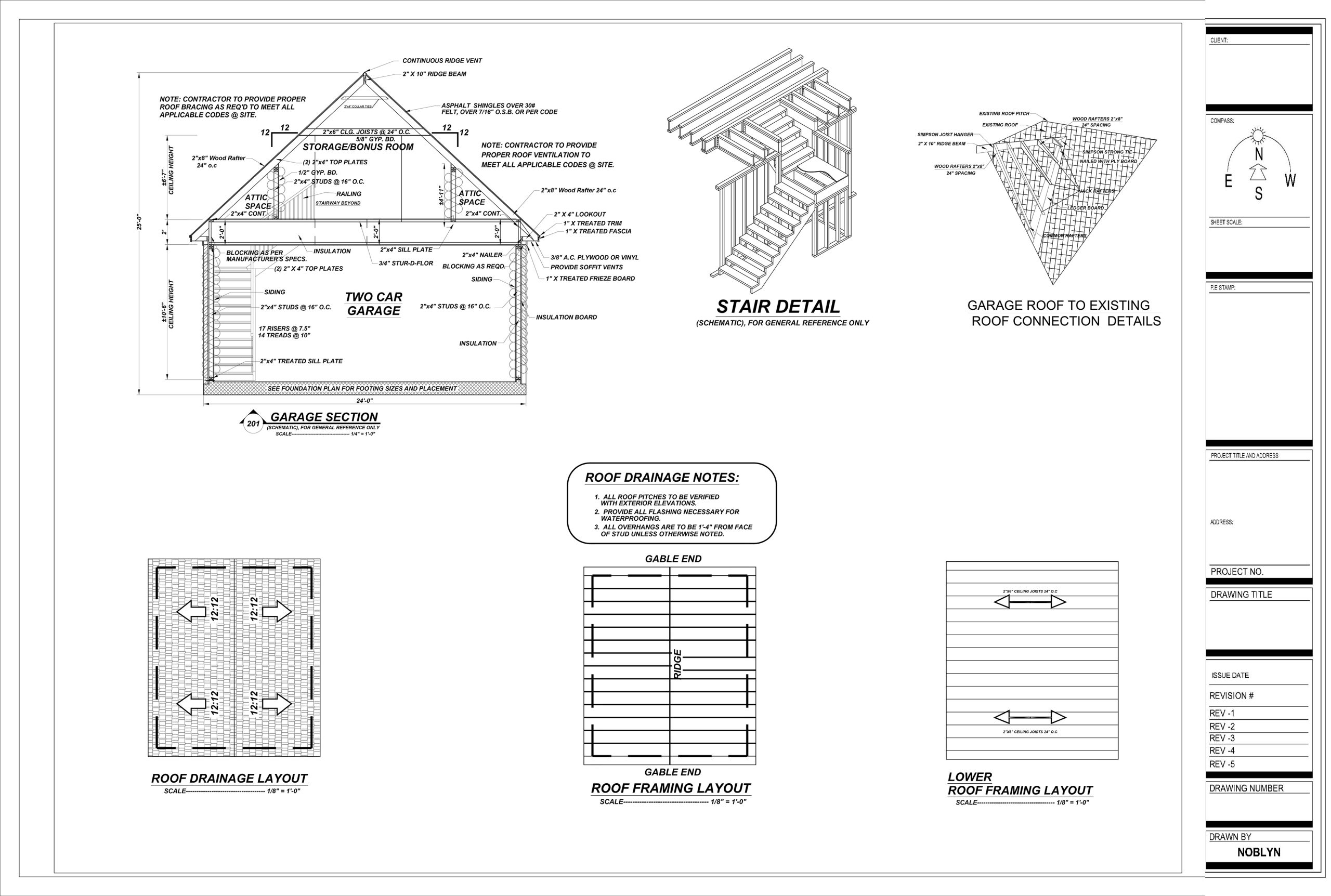

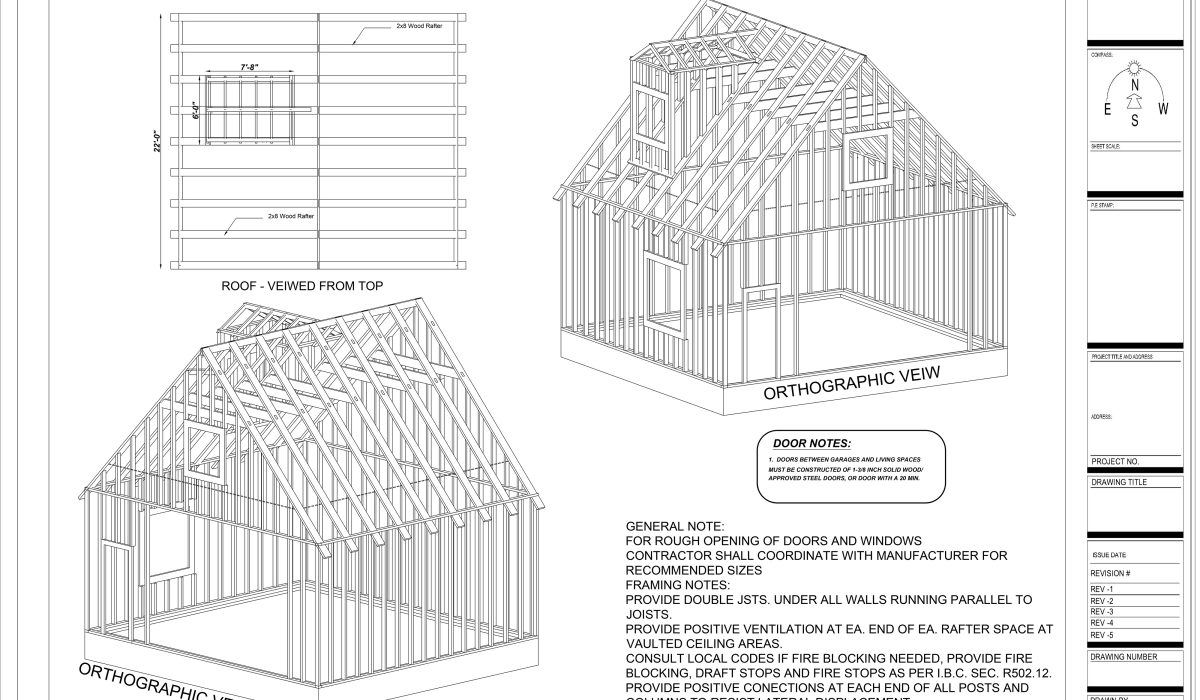

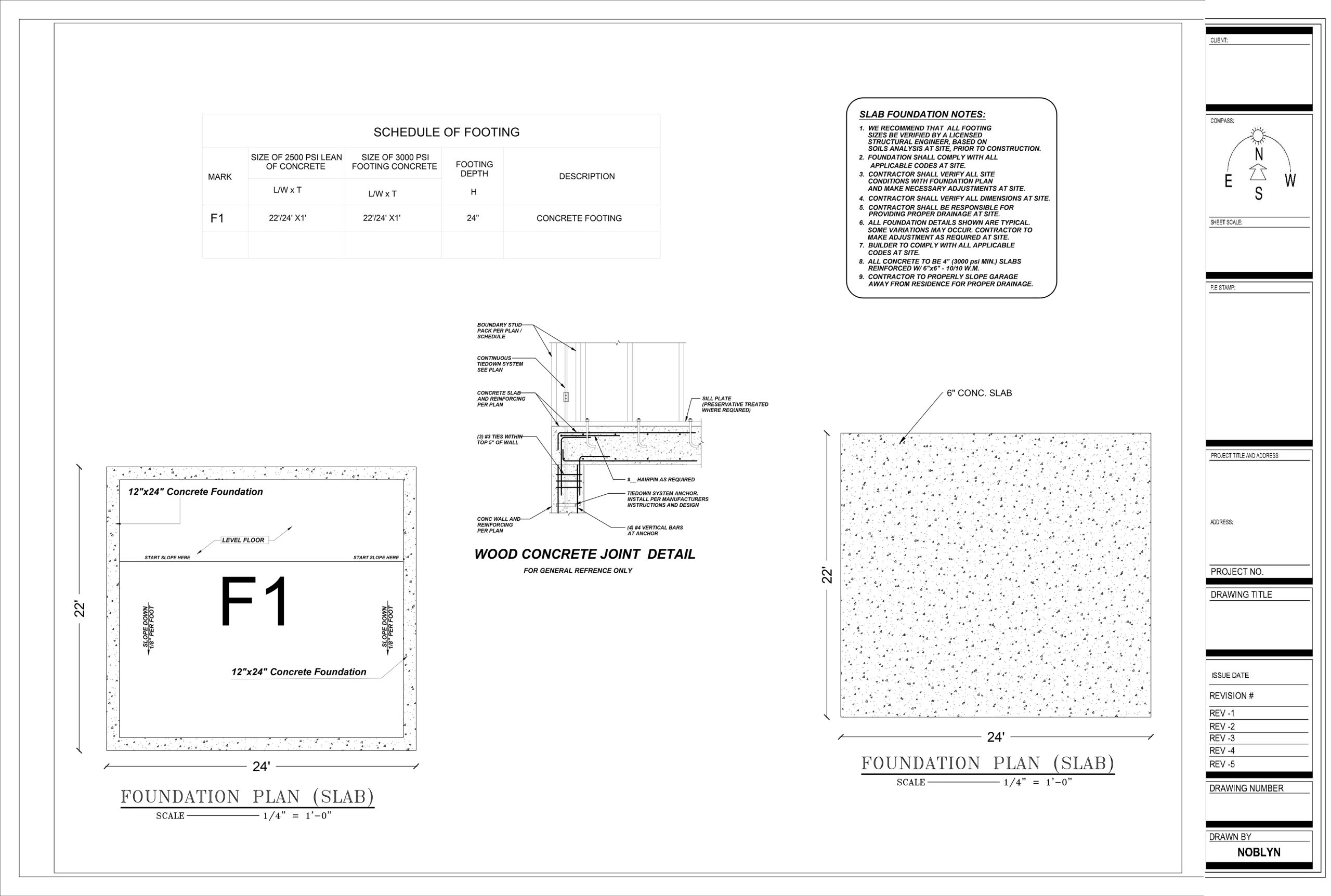

For this residential project in Virginia, Noblyn LLC delivered a comprehensive structural framing and foundation package for a custom detached two-car garage featuring an upper-level bonus room. Our scope provided highly detailed 3D orthographic framing models and complete exterior wall elevations to guide precise on-site assembly. To ensure uncompromised stability, we engineered rigorous concrete slab and footing plans, including specialized wood-to-concrete joint details and porch extension footings. The drawing set meticulously specifies critical structural connections, from beam-to-column detailing to ridge rafter assemblies and Simpson hurricane ties for maximum load resistance. Designed in strict adherence to the International Building Code (IBC), this permit-ready package ensures a seamless and fully compliant execution by the construction team.
- Category: 3D Drawing
- Location: Richmond, Virginia
- Completion: 2026
